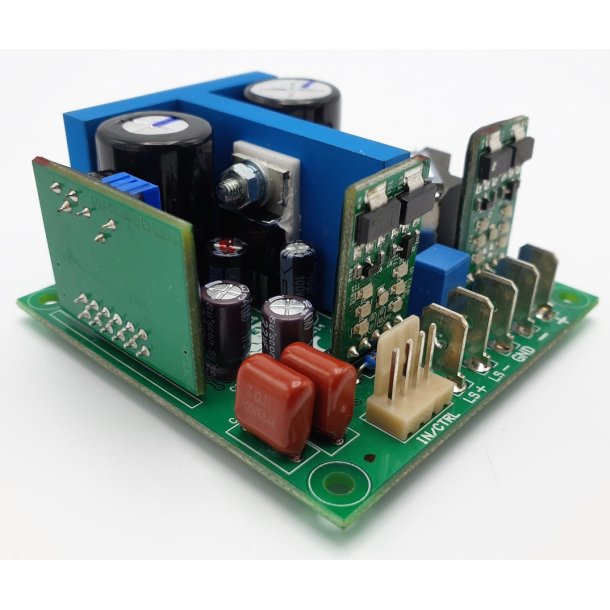

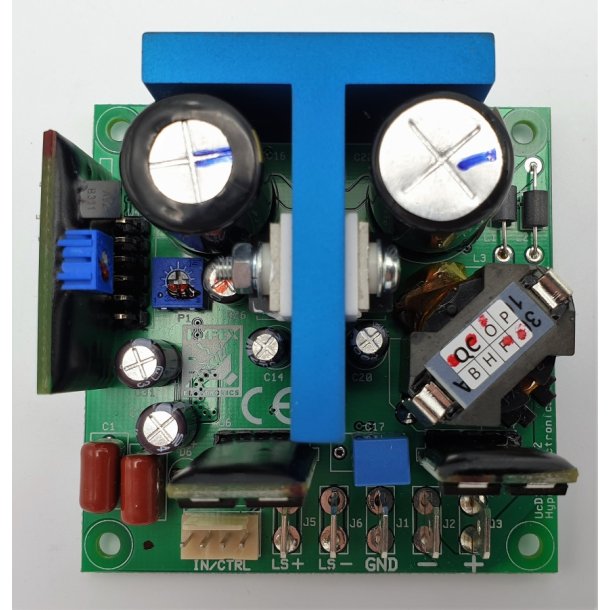

The UcD180HG amplifier module is a self-contained high-performance class D amplifier intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI. Control is based on a phase-shift controlled self-oscillating loop taking feedback only at the speaker output.
APPLICATIONS:
- Audiophile power amplifiers for professional and consumer use
FEATURES:
- Pop-free start and stop control
- Differential audio input
- Overcurrent and over voltage protection
- No compromise components
- LM4562 buffer OpAmp
- HxR12 mounted
- Ultra-low noise
- Improved on-board buffer supply
CONTENTS OF PACKAGING:
- UcD180HG with HxR amplifier module
- Mounting set UcD
- Manual
- Manual HxR
RECOMMENDED ADDITIONAL PARTS:
- Power supply SMPS400A180
- UcD signal cable
Specs
| Technique | UcD |
| Power (4Ω) | 180W |
| Power (8Ω) | 120W |
| Channels | 1 |
| HxR Ready | On Board |
| Weight | 200g |
| Dimensions mm | 65*65*30 |
| OpAmp | LM4562 |
| SMPS Voltage +/- | 46V |
| Recommended SMPS | SMPS400A180 or *SMPS1200A180(no DC error protection) |
| Over voltage protection @ | 52V |
| Under voltage protection @ | 25V |
