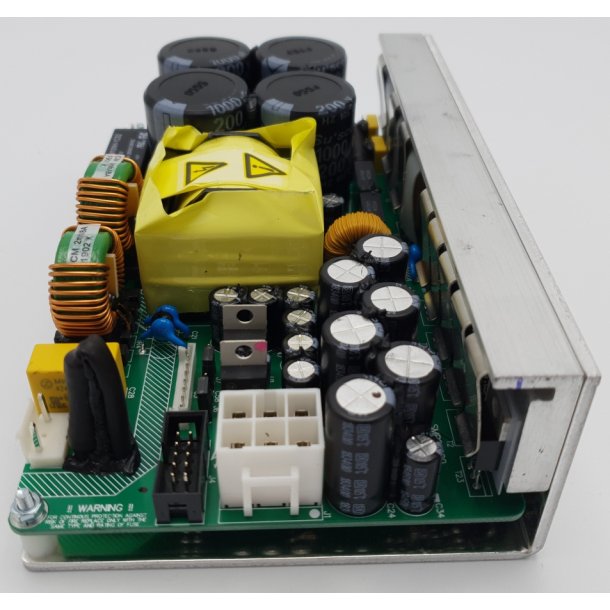

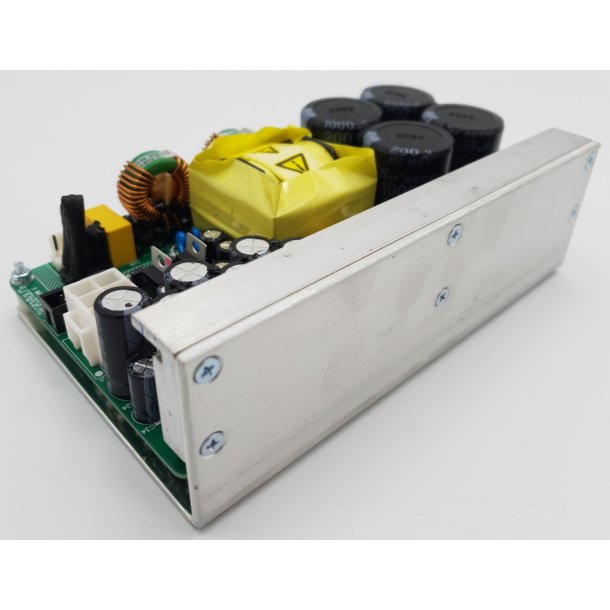

The SMPS1200 Power Supply is a 1200W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.
APPLICATIONS:
- Supply for single or multiple amplifiers of the UcD™ range
- Active loudspeakers
HIGHLIGHTS:
- High efficiency
- Selectablel input voltage range
- Extremely small form factor
- Low EMIl
GENERAL FEATURES:
- Advanced over current protection
- Remote controlled operation
- Low weight
- Compact
- Fits in 1HE (additional insulation required)
- Fixed output voltage (4 versions available)
ELECTRICAL FEATURES:
- High Line Input Voltage: 190-250Vac
- Low Line Input Voltage: 95-130Vac
- Output Voltage: 2x46Vdc
- Max. Output power: 1500W
- Max. Output power: 1200W @20Hz
- Switching Frequency: 100kHz
MECHANICAL FEATURES:
- Weight: 750g
- Dimensions: 165mm x 105mm x 55mm
CONTENTS OF PACKAGING:
- SMPS1200A180
- Manual
RECOMMENDED ADDITIONAL PARTS:
- Cable set SMPS1200
RECOMMENDED AMPLIFIER COMBINATIONS:
- UcD180HG *No DC-error protection
- UcD180HG with HxR *No DC-error protection
Specs
| Mains voltage input | 230V / 115V |
| Automatic input voltage selection | No, Selectable with jumper |
| SMPS Voltage +/- | 2*46Vdc |
| Max: Output power | 1500W |
| Max: Output power @ 20Hz | 1200W |
| Dimensions mm | 165*105*55 |
| Weight | 750 g |
