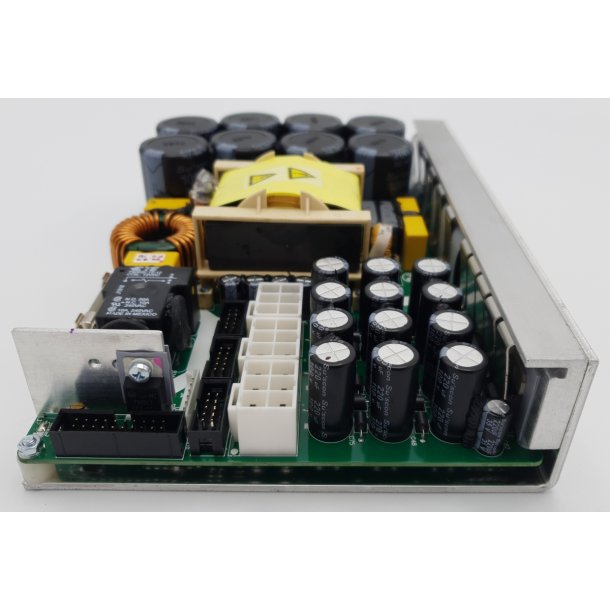

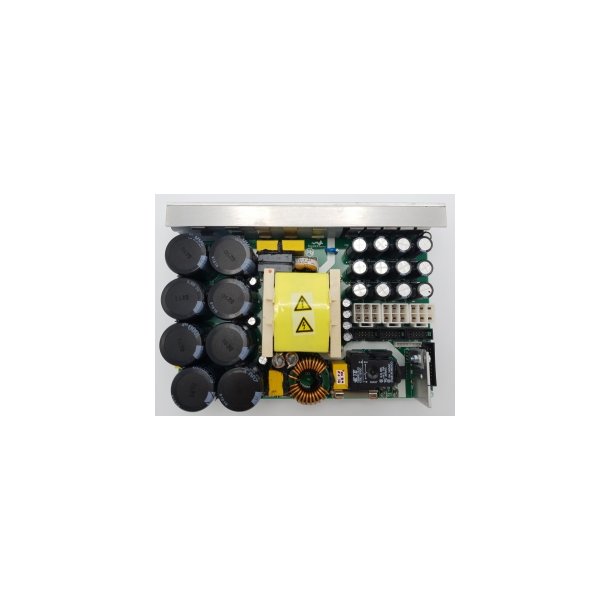

The SMPS3k Power Supply is a 3000W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.
APPLICATIONS:
- Supply for single or multiple amplifiers of the UcD™ range
- Active loudspeakers
HIGHLIGHTS:
- High efficiency
- Selectablel input voltage range
- Low EMI
GENERAL FEATURES:
- Advanced over current protection
- Remote controlled operation
- Low weight
- Compact
- Fixed output voltage (2 models available)
ELECTRICAL FEATURES:
- High Line Input Voltage: 180-264Vac
- Low Line Input Voltage: 90-132Vac
- Output Voltage: 2x65Vdc
- Max. Output power: 3600W
- Max. Output power: 3000W @20Hz
- Switching Frequency: 100kHz
MECHANICAL FEATURES:
- Weight: 1,5kg
- Dimensions: 200mm x 145mm x 55mm
CONTENTS OF PACKAGING:
- SMPS3kA400
- Manual
RECOMMENDED ADDITIONAL PARTS:
- Cable set SMPS3k
RECOMMENDED AMPLIFIER COMBINATIONS:
- UcD400HG *No DC-error protection available
- UcD400HG with HxR *No DC-error protection available
Specs
| Mains voltage input | 230V / 115V |
| Automatic input voltage selection | No, Selectable with jumper |
| SMPS Voltage +/- | 2*65Vdc |
| Max: Output power | 3600W |
| Max: Output power @ 20Hz | 3000W |
| Dimensions mm | 200*145*55 |
| Weight | 1,5 kg |
