SMPS3kA700

2.195,00 DKK

stk.

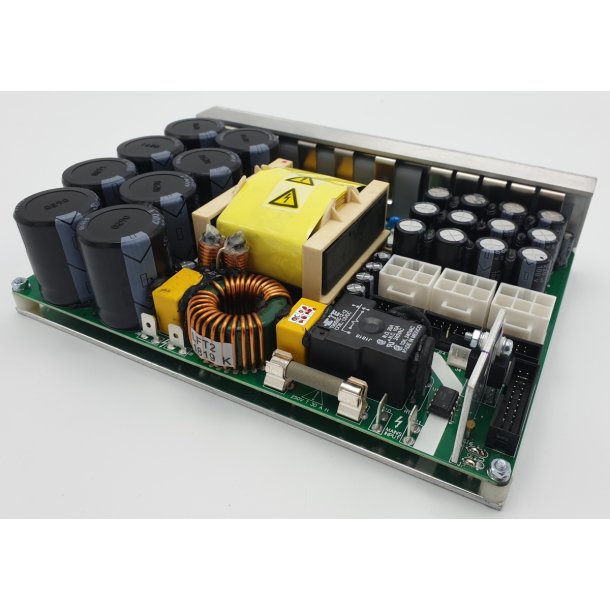

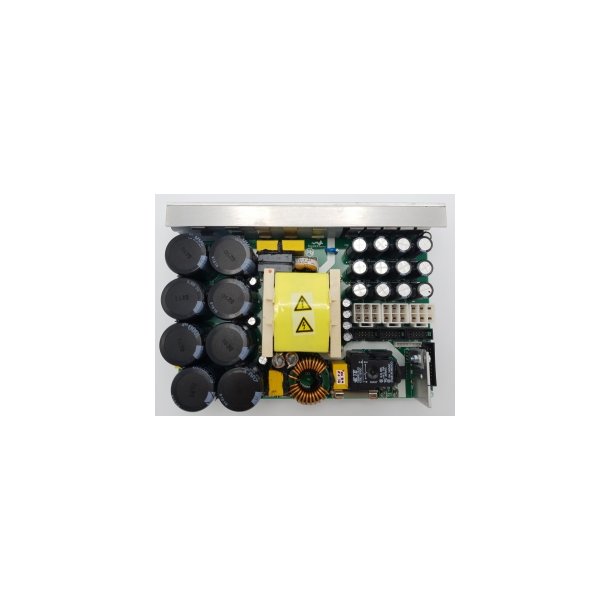

The SMPS3k Power Supply is a 3000W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.

APPLICATIONS:

  • Supply for single or multiple amplifiers of the UcD™ range
  • Active loudspeakers

HIGHLIGHTS:

  • High efficiency
  • Selectablel input voltage range
  • Low EMI

GENERAL FEATURES:

  • Advanced over current protection
  • Remote controlled operation
  • Low weight
  • Compact
  • Fixed output voltage (2 models available)

ELECTRICAL FEATURES:

  • High Line Input Voltage: 180-264Vac
  • Low Line Input Voltage: 90-132Vac
  • Output Voltage: 2x85Vdc
  • Max. Output power: 3600W
  • Max. Output power: 3000W @20Hz
  • Switching Frequency: 100kHz

MECHANICAL FEATURES:

  • Weight: 1,5kg
  • Dimensions: 200mm x 145mm x 55mm

CONTENTS OF PACKAGING:

  • SMPS3kA700
  • Manual

RECOMMENDED ADDITIONAL PARTS:

  • Cable set SMPS3k

RECOMMENDED AMPLIFIER COMBINATIONS:

  • UcD700HG with HxR
  • UcD2k

Specs

Mains voltage input 230Volt AC/50Hz +/- 10% (switch able to 115Volt 60Hz)
Automatic input voltage selection No, Selectable with jumper
SMPS Voltage +/- 2x85Vdc
Max: Output power 3600W
Max: Output power @ 20Hz 3000W
Dimensions mm 200*145*55mm
