SMPS400A400

1.195,00 DKK

stk.

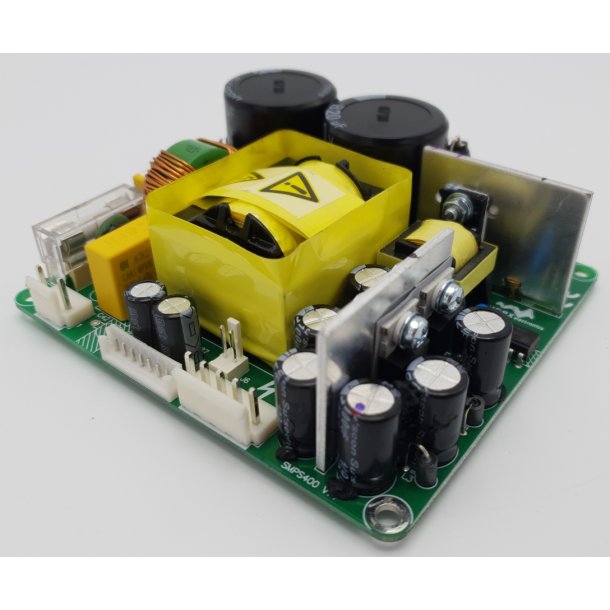

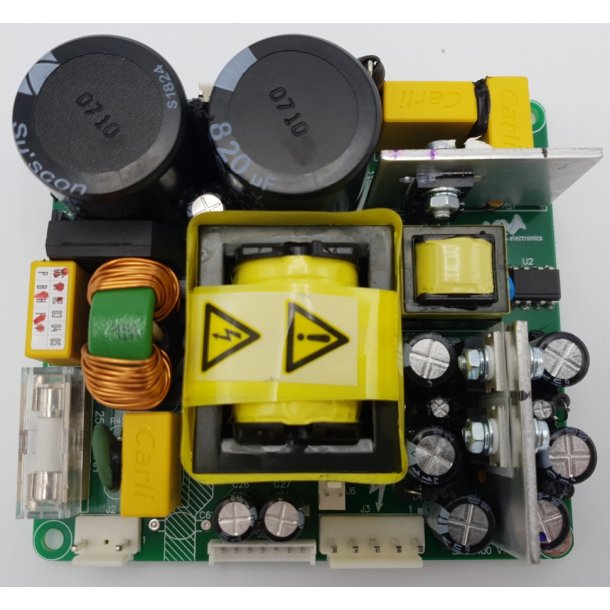

The SMPS400 Power Supply is a 400W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.

APPLICATIONS:

  • Supply for single or multiple amplifiers of the UcD range
  • Active loudspeakers

HIGHLIGHTS:

  • High efficiency
  • Selectable input voltage range
  • Extremely small form factor
  • Low EMI

GENERAL FEATURES:

  • Advanced over current protection
  • Remote controlled operation
  • Low weight
  • Compact
  • Fits in 1HE (additional insulation required)
  • Fixed output voltage (3 versions available)

 ELECTRICAL FEATURES:

  • High Line Input Voltage: 200-240Vac +/-10%
  • Low Line Input Voltage: 100-120Vac +/-10%
  • Output Voltage: 2x62Vdc
  • Max. Output power: 400W @20Hz
  • Switching Frequency: 100kHz

MECHANICAL FEATURES:

  • Weight: 750g
  • Dimensions: 165mm x 105mm x 55mm

CONTENTS OF PACKAGING:

  • SMPS400A400 with mounted spacers
  • Manual

RECOMMENDED ADDITIONAL PARTS:

  • Cable set SMPS400

RECOMMENDED AMPLIFIER COMBINATIONS:

  • UcD400HG
  • UcD400HG with HxR

Specs

Mains voltage input 230V / 115V
Automatic input voltage selection No, Selectable with jumper
SMPS Voltage +/- 2x62Vdc
Max: Output power 600W
Max: Output power @ 20Hz 400W
Dimensions mm 105*100*42(37)
Weight 300g
