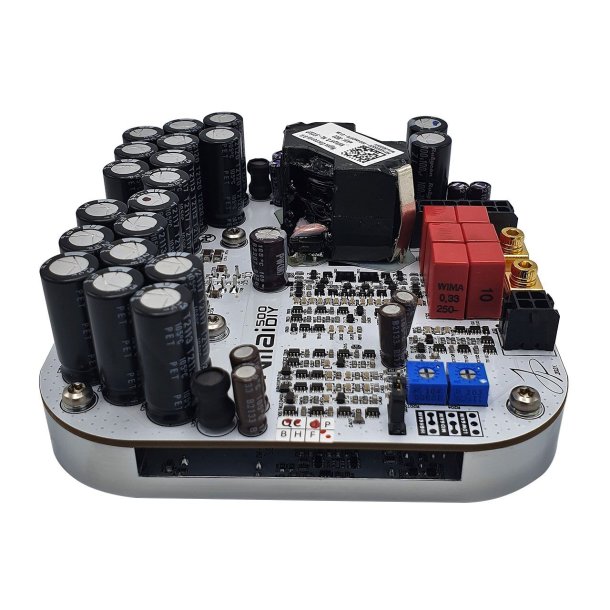

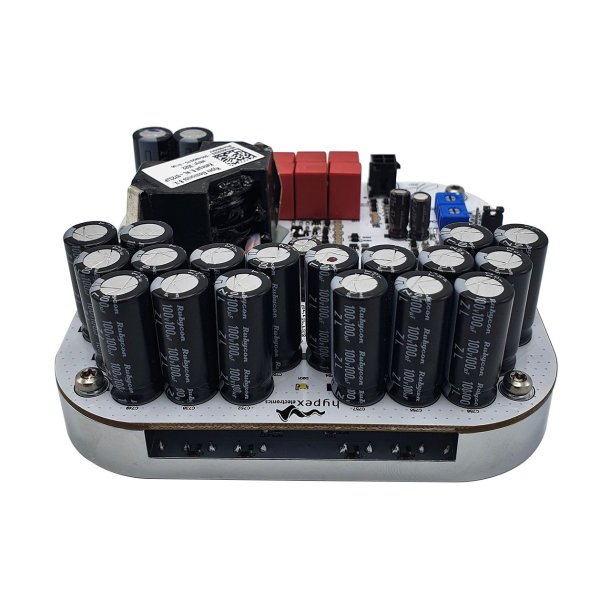

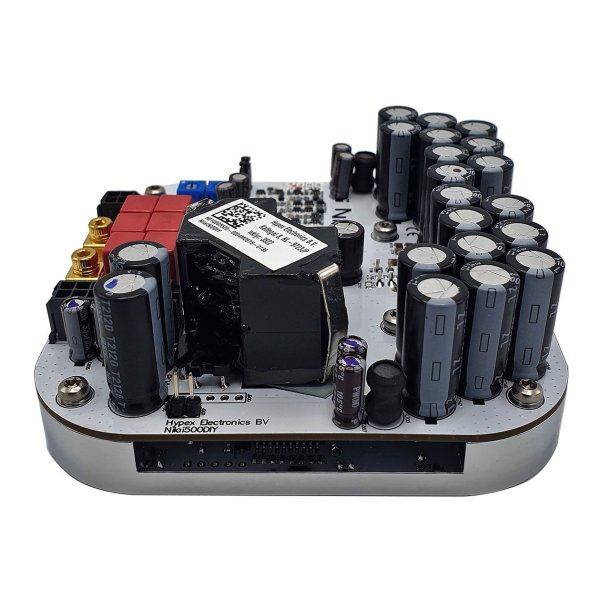

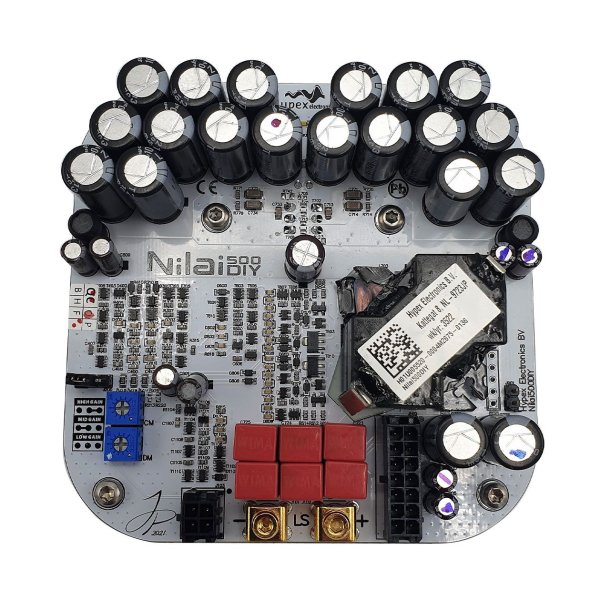

Hypex Nilai500DIY modul
Verdens måske bedste forstærker, og helt sindssygt for det er faktisk sandt.
Ved køb af Nilai500 modul og PS500DIY strømforsyning er alle interne kabler med så det er nemt at samle.
Link til video:
Nilai® Class D technology is here!
We have taken our existing control-loop topology to a whole new level resulting in an immense performance upgrade compared to NCORE®. The overall performance has increased by not less than 10 times!
This massive performance boost results in distortion figure that are 10 times lower, a power supply noise rejection that is 10 times higher and a reduced output impedance that has dropped by a factor 10. These figures may already sound incredible, wait until you hear them come alive through your speakers!
APPLICATIONS
High-end power amplifiers
FEATURES
500W / 4Ohm
THD+N: 0,00015% (-116dB) @ 100W / 4Ohm / 20.000Hz
Output noise: 9,5µV @11,8dB gain
Gain adjust in 3 steps (11,8 - 21,8 and 27,8)
High fidelity components
Discrete buffer stage and regulators
Dedicated high-end power supply PS500DIY
Also available in mono & stereo kits
CONTENTS OF PACKAGING
Nilai500DIY amplifier module
Nilai500DIY cable set
Nilai500DIY mounting set
Nilai500DIY manual
RECOMMENDED ADDITIONAL PARTS
PS500DIY
Data:
| Power (2Ω): | 500W |
|---|---|
| Power (4Ω): | 525W |
| Power (8Ω): | 260W |
| Channels: | 1 |
| Technology: | Nilai® |
| Family: | Nilai® |
| HxR Ready : | On board |
| Recommended SMPS: | PS500DIY |
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| Nilai500DIY-01xx-R3.pdf | 1.07MB | Download |
