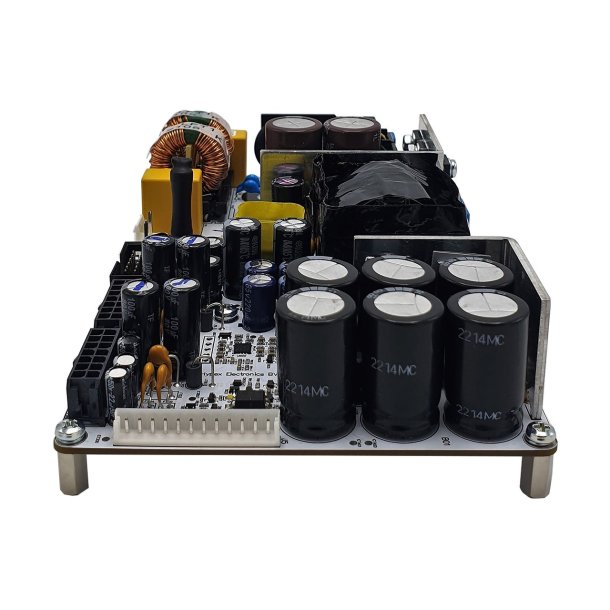

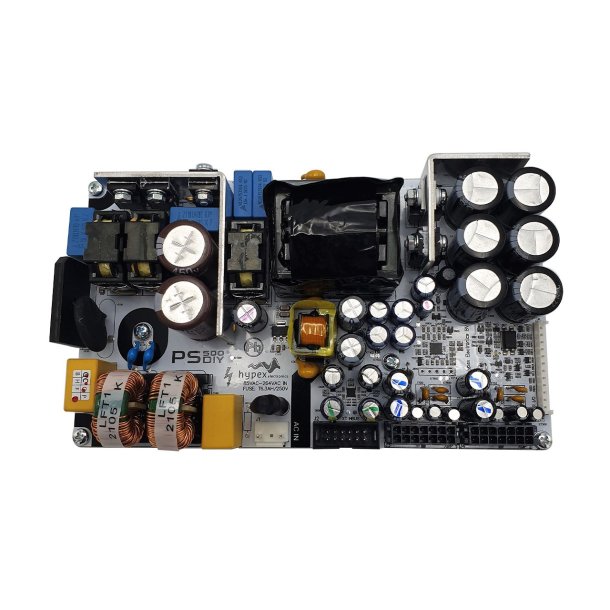

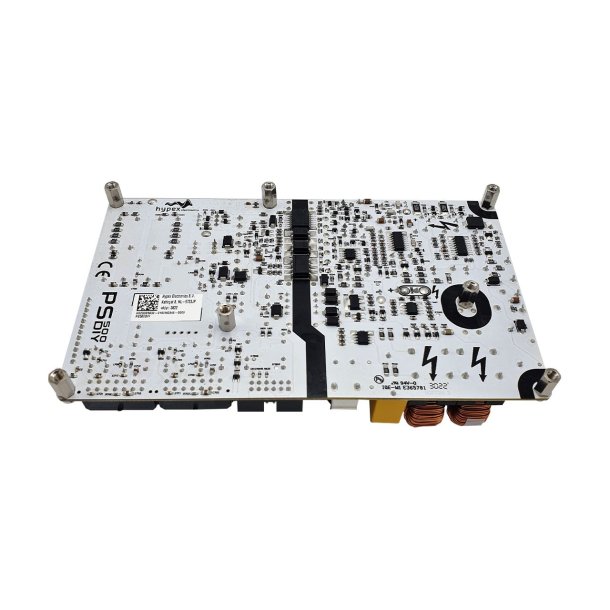

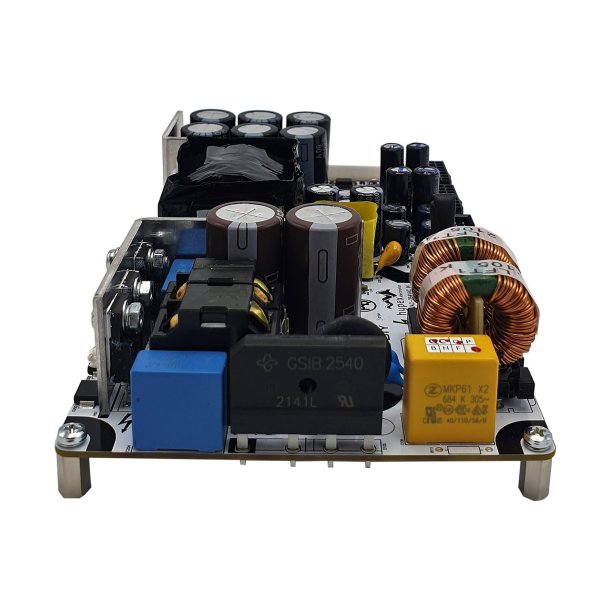

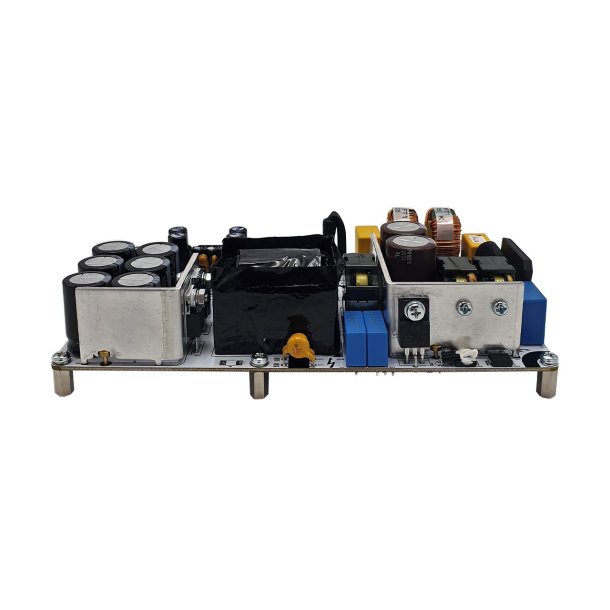

PS500DIY er strømforsyningen til Nilai500DIY modulet.
Ved køb sammen med Nilai500DIY modulet eller modulerne så medfølger alle interne kabler. PS500DIY kan også levere strøm til hele 2 stk Nilai500DIY således at det bliver til et stereo effekttrin.
Verdens bedste forstærker kræver verdens bedste strømforsyning og her er den.
The PS500DIY is a high efficiency Safety Class 2 switch mode power supply specifically designed to be used in combination with single or dual Nilai500DIY modules. Key features are high efficiency over the entire load range, use of audiofile components and interleaved PFC for increased power density and lower conducted EMI.
The PS500DIY features a comprehensive over current protection. When an overload condition remains for a longer period of time, the supply voltage gradually decreases until entering hiccup mode. Universal mains capability ensures reliable operation across the globe. Sturdy Molex® connectors provide a solid connection to the amplifier modules while the user has control over on/off operation through the I/O and HBUS connectors.
The user accessible 5V standby and symmetrical auxiliary supply enables the user to connect third party electronics which makes the PS500DIY ideal for DIY purposes.
HIGHLIGHTS
- High End Audio Amplification
- Interleaved PFC Stages
- Supplies Single Or Dual Nilai500 Amplifiers
- Universal Mains Input
- 2013 ErP Lot 6 0.5W Standby Supply
Auxiliary Supply: | ±18V/200mA |
---|---|
Idle Power: | 5,5W |
Output Power: | 600W |
Short Term Output Power: | 800W |
Standby Power: | less than 0,5W |
Standby Supply: | 5V/1A |
Output voltage: | ±70V |
Titel | Type | Størrelse | Download |
---|---|---|---|
PS500DIY-01xx-R3.pdf | 1.13MB | Download |
