DMP-A8 er eversolos nye all-in-one high-end streamer, DAC og forforstærker fyldt med high-end features. Med afsæt i mange af de samme funktioner og egenskaber som DMP-A6, går eversolo all-in og har konstrueret et high-end produkt.
Forforstærker med fuld balanceret R2R analog volume control. DAC-del med AKM Velvet Sound (Verita) DAC-chipset. Dobbelte Femto clocks. Fuld DSP processor. To forskellige strømforsyninger til analogdelen (linear power supply) og digitaldelen (switching power supply). Endnu flere tilslutninger (HDMI eARC/ARC In og HDMI-IIS Out (I2S)).
Model
EVERSOLO DMP-A8

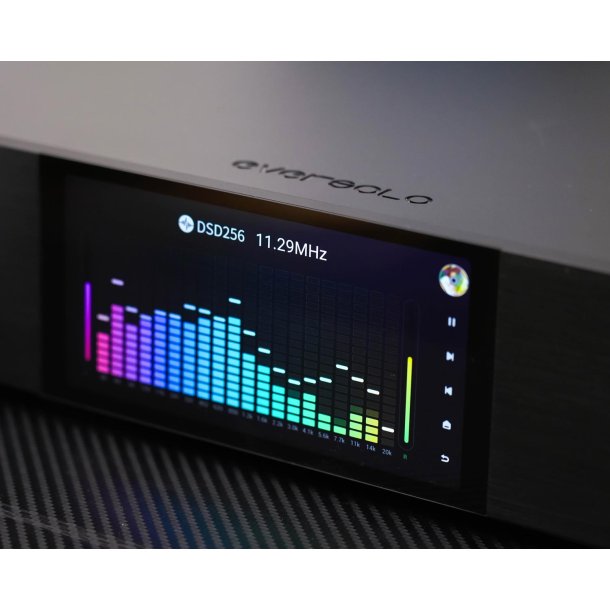

Display
6" LCD touchscreen
Internal Memory
4GDDR4 +64GeMMC
DAC
AK4191EQ+AK4499EX
Audio Processor
XMOS XU316
Op-amp Chip
OPA1612
Power Supply
High-quality, low-noise linear + digital dual power supply
SSD
Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included).
USB-A Port
USB3.0*2
Ethernet
RJ-45(10/100/1000Mbps)
WiFi
WiFi 2.4G+5G dual band
Playback and DAC Decoding
Support up to stereo DSD512, PCM 768KHz 32Bit
Music Service
Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
Streaming
Air Play, DLNA, Tidal Connect etc.
Bluetooth Audio Input
BLuetooth BT5.0, support SBC/AAC
USB-B Audio Input
Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
Optical/Coaxial Audio Input
Support up to stereo PCM 192KHz 24Bit, Dop64
HDMI ARC
Support up to stereo PCM 192KHz 24Bit
Analog preamp audio input
XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
USB Audio Output
Support up to stereo DSD512,PCM 768KHz 32Bit
IIS Output
Support up to stereo DSD512, PCM 768KHz 32Bit
Optical/Coaxial Audio Output
Support up to stereo PCM 192KHz 24Bit, Dop64

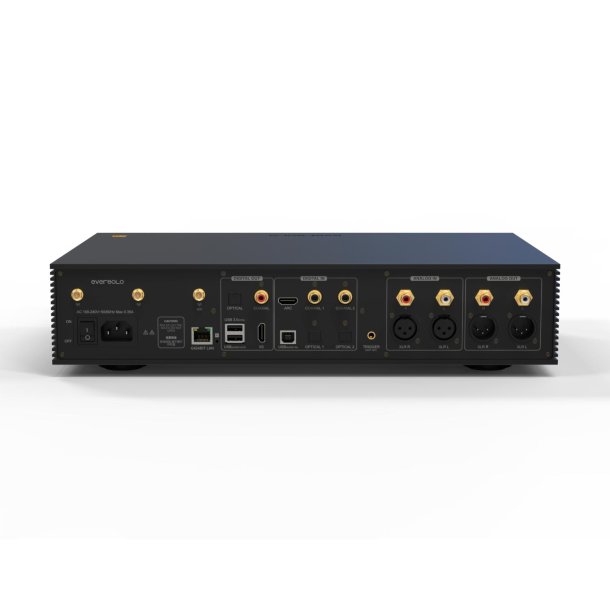

Analog Audio Output
Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)
XLR Output Audio Characteristics
Output level: 4.2V
Frequency response: 20Hz~20KHz(±0. 25dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @No-wt
Crosstalk: >-121dB
RCA Output Audio Characteristics
Output level: 2.1V
Frequency response: 20Hz~20KHz (±0. 25dB)
Dynamic range: > 125dB
SNR: >125dB
THD+N: <0.00010%(-119dB)@A-WT
Crosstalk: >-121dB
Control Method
Mobile App,Touch screen control,IR+Bluetooth remote control
PSU
AC 110~240V 50/60Hz
Rated Power
16W
Dimensions
W 388mm*L 248mm* H 90mm
Packing List
Power cable*1, Remote Control*1,Screwdriver*1,user manual*1
