Nemt og effektivt.
Clio måler de vigtigste data vi har brug for til perfekt udmåling.
https://www.audiomatica.com/wp/?page_id=2429
Clio Pocket 2 is a powerful but lightweight portable measurement system.

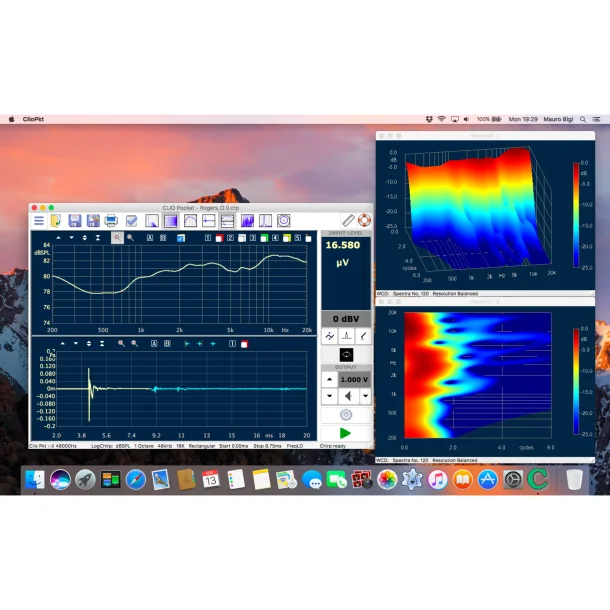

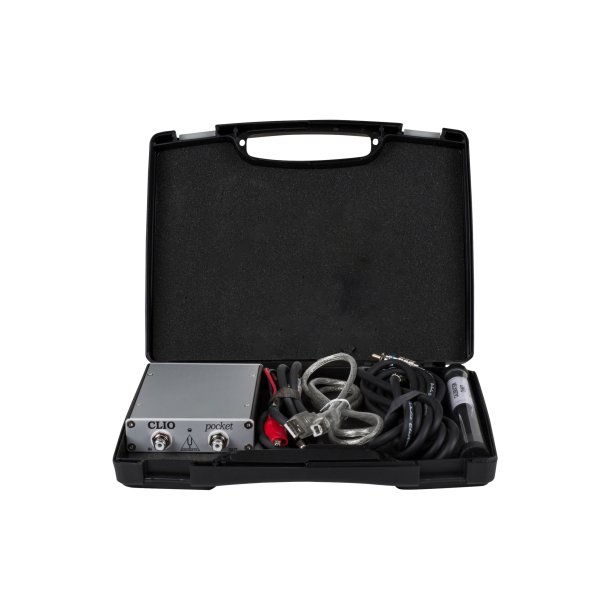

The system is composed of multi-platform Clio Pocket software, Clio CP-01 Audio Interface hardware plus accessories.

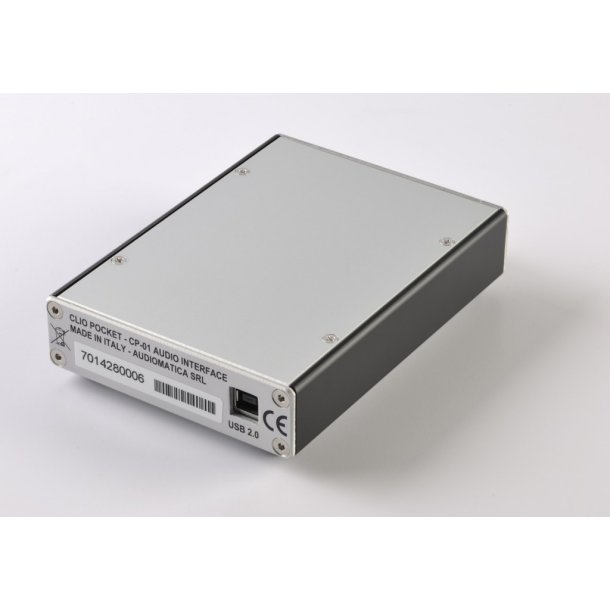

The Clio CP-01 Audio Interface uses an USB 2.0 connection for maximum portability and compatibility with current and future computer hardware architectures.
TECHNICAL SPECIFICATIONS
CP-01 AUDIO INTERFACE
| GENERATOR | |
| 24 Bit sigma-delta D/A Converter | |
| Frequency range: | 1Hz-45kHz |
| Frequency accuracy: | better than 0.01% |
| Frequency resolution: | 0.01Hz |
| Output impedance: | 150Ohm |
| Max output level (Sine): | 13dBu (3.46Vrms) |
| Attenuation: | 0.1 dB steps to full mute |
| THD+Noise(Sine): | 0,008% |
| AC ANALYZER | |
| 24 bit sigma-delta A/D Converter | |
| Input range: | +40 ÷ -40dBV |
| Max input acceptance: | +40dBV (283Vpp) |
| Input impedance: | 64kOhm (5.6kOhm mic) |
| Phantom power supply: | 8.2V |
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| CLIO-Pocket-Survival-Guide.pdf | 4.90MB | Download | |
| Pocket-Pills.pdf | 1.14MB | Download | |
| windowsxref10.pdf | 17.54KB | Download |
