STA-1000D
Fantastic power amplifier with Danish Pascal modules
Really good sounding.
2 x 500 Watt 4 Ohm
2 x 280 Watt 8 Ohm
The new generation of class D PA amplifiers from IMG STAGELINE impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.
Stereo class D PA amplifier
Class D concept with power amplifier modules from PASCAL
Excellent acoustic performance
Extra wide dynamic range with very low THD
Excellent pulse response also in the bass range
482 mm (19") rack installation, 2 RS
Silent operation due to temperature-controlled fans, only activated if temperature rises above 85 °C
Lightweight design due to compact switch-mode power supply
Energy-efficient concept due to a high efficiency
2 level controls
Protected against short circuit, overtemperature, DC voltage at the output and overload
LEDs for indicating power, signal, bridge, overload (clip), overheating and protect
Bridged operation
100 V line technique possible in bridged operation
Wide mains voltage range: ˜ 85-265 V

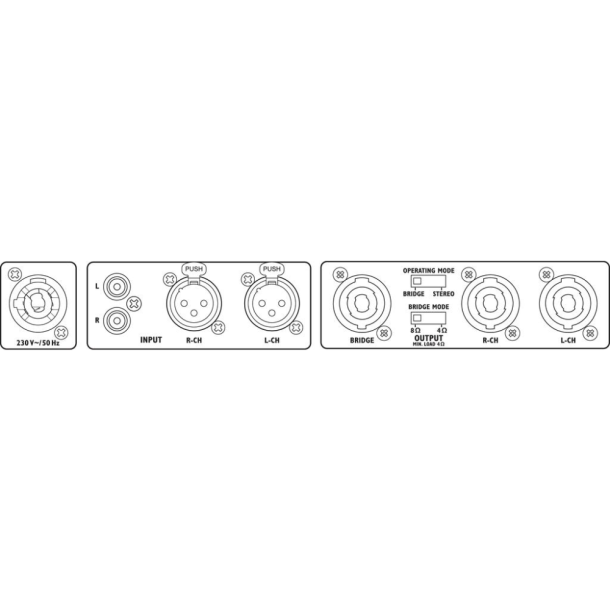

NEUTRIK POWERCON and SPEAKON connections
SOUNDCHECK 03/2015
"The STA-1000D and STA-2000D provide an unobtrusive sound reproduction of a high quality. No matter whether classical music, rock music or voice reproductions, the power amplifier perfectly meets any requirement."
tools4music 02/2015
"The power amplifiers STA-200D and STA-1000D from IMG Stage Line impress by an elaborated selection and configuration of the inner components. Due to the low weight and the mounting depth of 335 mm only, this series is suitable for both rack mounting and installation into shelves. With these test results, they are also suitable for hi-fi applications. I consider these 'lightweights' to be very well-suited for small to medium-sized entertainment applications, PA applications at conferences and for speech transmissions well as a multi-channel power amplifier for stage monitoring."
+ Operating reliability
+ Weight
+ Test results: low THD, perfect frequency response and S/N ratio
+ Low-maintenance design
+ Protective circuits
+ Very wide operating voltage range
+ Workmanship
+ Efficiency
- No XLR feedthrough connector
