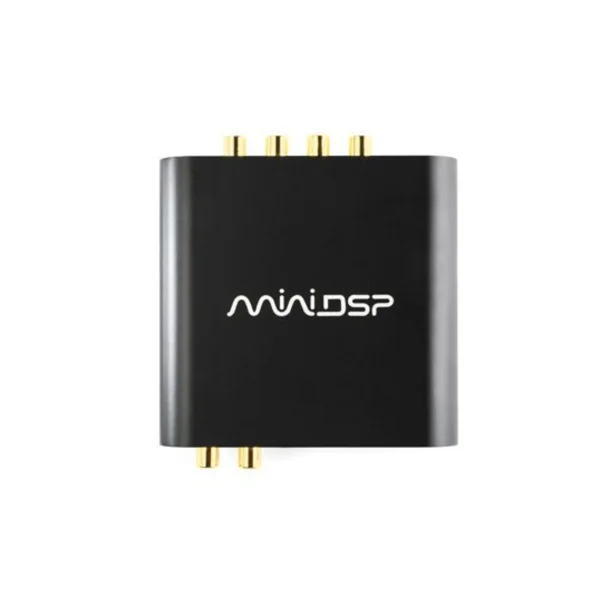

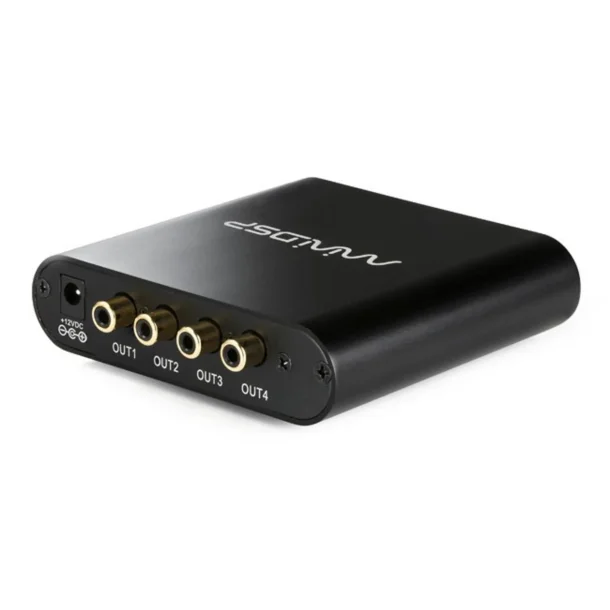

miniDSP 2x4 HD Boxed DSP

miniDSP 2x4 HD Boxed DSP

Introducing the upgrade of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This compact powerhouse is fully loaded with miniDSP's well-tested and established audio processing capabilities: adaptable parametric EQ, Butterworth and Linkwitz-Riley crossovers, sophisticated biquad programming, and individual output channel delay. The innovative "one hardware many plugins" concept by miniDSP opens the door to numerous captivating possibilities for future applications! This product comes with a coupon for one free miniDSP plugin download.

• ADSP21489 400MHz SHARC DSP floating point engine
• XMOS Xcore200 for USB control and bidirectional audio streaming
• 24 bit ADC/DAC resolution
• Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
• TOSLINK digital input
• Unbalanced outputs: Max 2Vrms
• USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
• 4 preset configuration, recallable via IR, Software
• Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
• Device does not required a PC once configured
• External single 12V supply

The upgraded onboard 400 MHz Analog Devices SHARC processor also enables substantial processing upgrades previously available only on more expensive platforms. One example is 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software. The SHARC processor can perform fixed-point as well as floating-point calculations. This makes the miniDSP 2x4 HD Boxed perfect for for a wide range of applications.

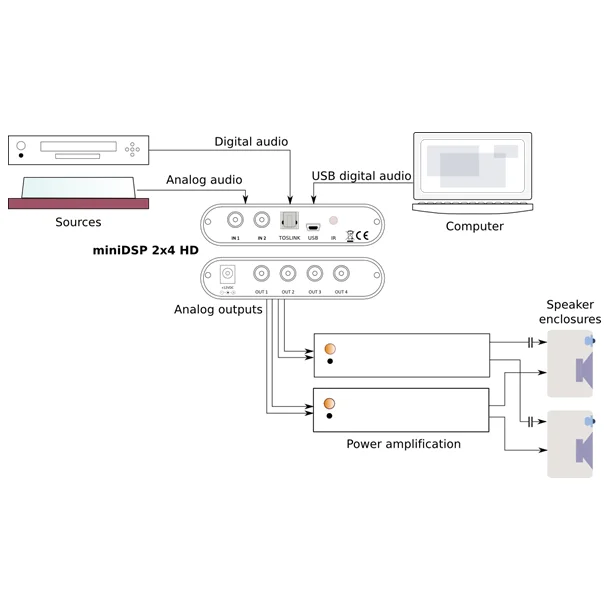

I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD boxed will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios — anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.
