Produktet er under opdatering, her er links til Scanspeak vedr. denne enhed:
https://www.scan-speak.dk/datasheet/pdf/16w-4538g05.pdf

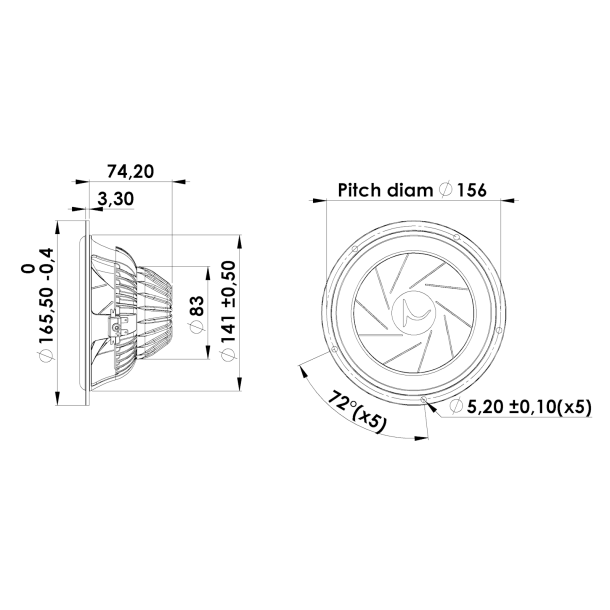

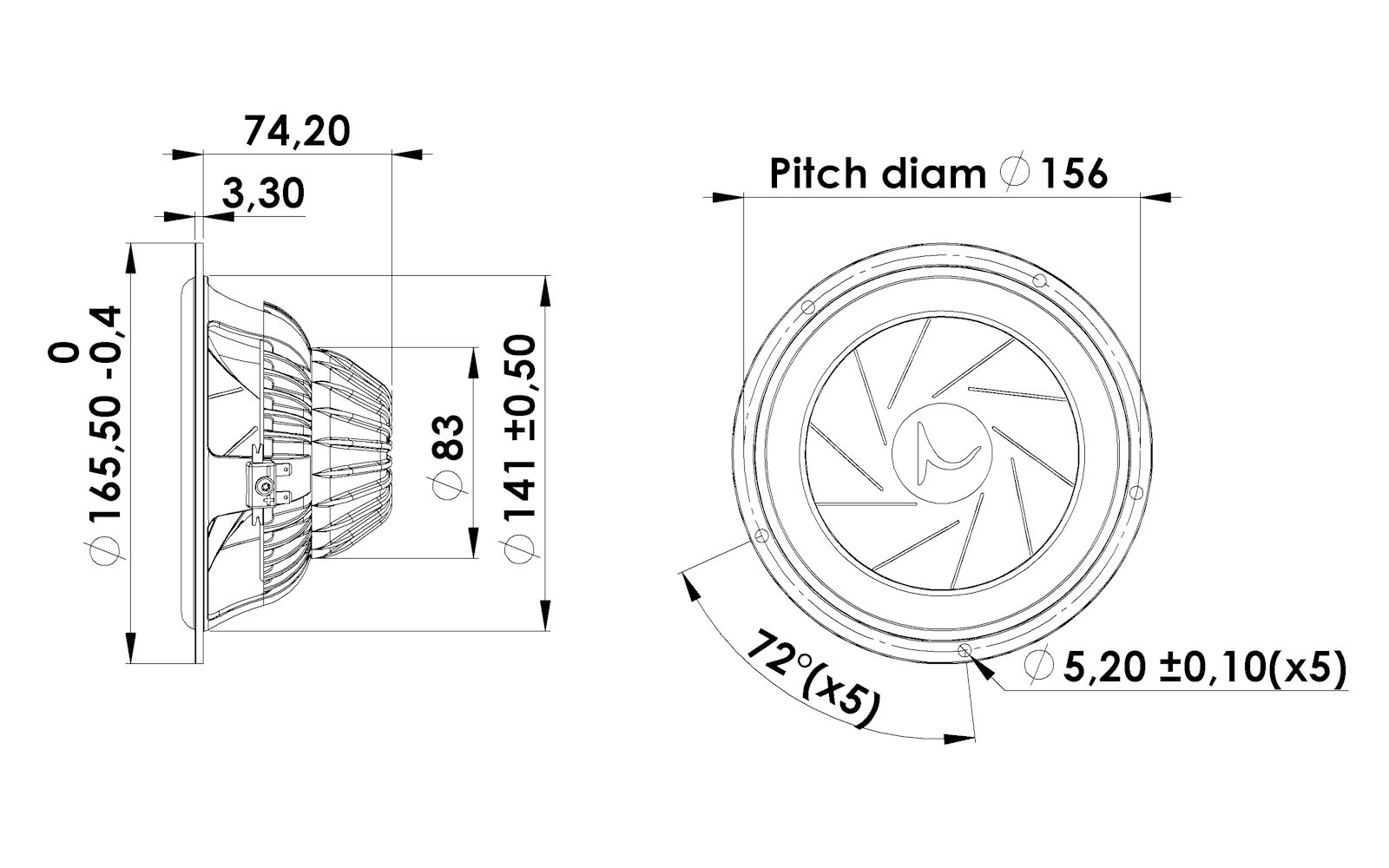

https://www.scan-speak.dk/datasheet/drw/16w-4538g05.png
https://www.scan-speak.dk/datasheet/3d/16w-4538g05.ZIP
https://www.scan-speak.dk/product/16w-4538g05/
Specifikationer:
Størrelse: 6
Nominel impedans: 4
Minimum impedans: 3,5
Maximum impedans: 35
DC modstand: 3,1
Induktion: 0,18
Egenresonans: 36
Mekanisk Q: 3,82
Elektrisk Q: 0,39
Total Q: 0,35
Kraft faktor: 5,5
RMS: 1
Mms: 16,9
Cms: 1,12
D: 125
Sd: 123
Vas: 24
Følsomhed: 90
RMS Watt: 70
Long Term Watt: 125
Voice coil dia.: 38
Voice coil Height: 17,2
Voice coil layers: 2
Gab Height: 4
Linear excursion: 6,6
Max. mechanical excursion: 13,5
Vægt: 1
Displacement vol.: 0.20
Frekvensområde: fs-5000 Hz
Lukket: Vbox=10 ltr, f(-3dB)=66 Hz
Basrefleks: Vbox=21 ltr, fb=38 Hz, f(-3dB)=38 Hz
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 16w-4538g05.pdf | 370.02KB | Download |
