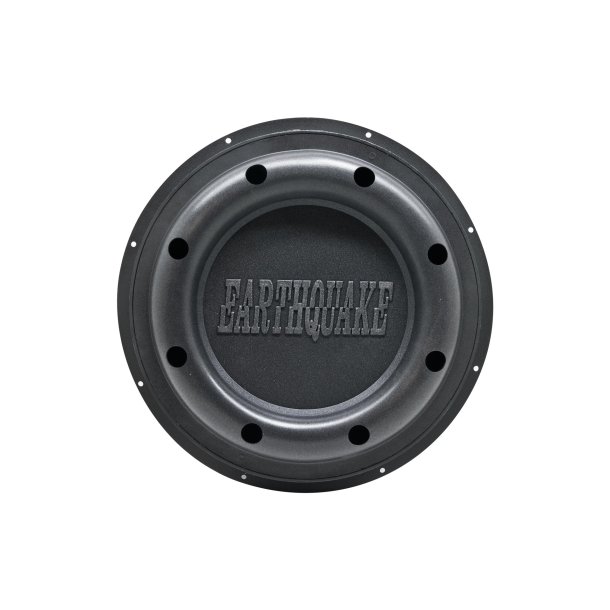

Earthquake SLAPS are Tunable Passive Radiators that provide additional bass, without additional amplifier power or enclosure volume.
Designed to perfectly complement all good quality long-throw woofers on the market. SLAPS add up to +6dB of bass compared to regular sealed and ported enclosures. The benefit of them being user tunable is they can be integrated into virtually any sub/ cabinet combination.
Key Installation Benefits:
- Installs just like a subwoofer

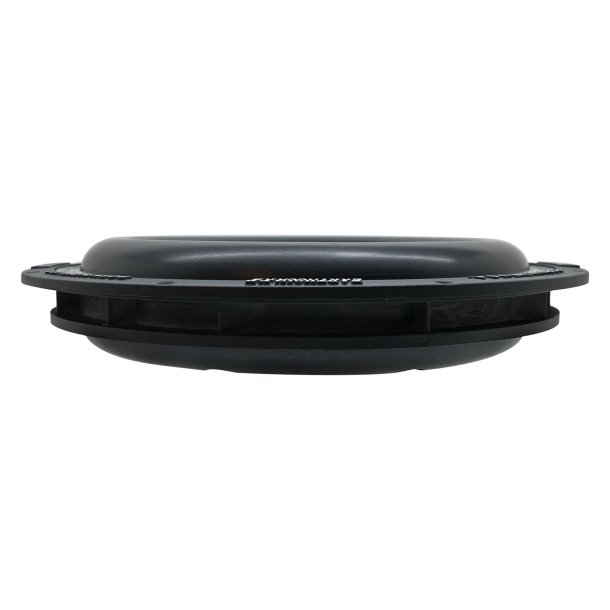

- Slim-mount design is only 3-inches deep
- No increase over existing sealed subwoofer enclosure sizes
- Easy tuning for quick adjustments
Her er nogle link som hjælpeværktøjer til at konstruere din egen konstruktion. Vi hjælper gerne med at vejlede.
https://www.earthquakesound.dk/wp-content/SLAPS/index.html
https://www.earthquakesound.dk/wp-content/uploads/2016/10/SLAPS_manual_ENG.pdf
- Produkt Dimensioner
- Diameter
- 340 mm
- Countersinking Depth
- 6 mm
- Cut out hole
- 310 mm
- Mounting Depth
- 44 mm
- SWE (Super Wide Edge)
- 44mm
- Rec. Free Space
- 90mm (Required free space on each side of the device)
Parameters
- Qmd
- 7 (Mechanical losses – 7 is typical for passive radiator)
- Sd
- 0,04196 (Piston areas measured from peak of surround to peak of surround)
- Mms
- 0,4 kg
- Cms
- 0,0001998 M/N
- Fs
- 17.6 Hz
