Earthquake SLAPS-15-V2

SLAPS is short for Symmetrically Loaded Audio Passive System.

Designed to perfectly complement all good quality long-throw woofers on the market.

SLAPS add up to +6dB of bass compared to regular sealed and ported enclosures and can be integrated into virtually any sub/cabinet combination.

SLAPS is a patented type of passive device that significantly increases subwoofer efficiency and ability for ultra low frequency reproduction.

Note:

This version does not feature an adjustable mass for tuning.

It is designed for a 85 Liter box ( 3 cubic feet ) and at a tuning frequency of 15Hz.

Keep at least 5 cm of free air behind the SLAPS-15-V2 for it to be able to move freely.

Designed to perfectly complement all good quality long-throw woofers on the market. SLAPS add up to +6dB of bass compared to regular sealed and ported enclosures and can be integrated into virtually any sub/cabinet combination. SLAPS is a patented type of passive device that significantly increases subwoofer efficiency and ability for ultra low frequency reproduction. SLAPS is short for Symmetrically Loaded Audio Passive System. As the name indicates, SLAPS is built symmetrically which distinguishes it from traditional passive devices. It integrates identical components in its suspension design, this results in identical stroke regardless of forwards or backwards motion. The high efficiency and performance is a result of the pneumatic coupling between SLAPS and an active driver.

SLAPS overcomes the limitations known from the conventional sealed and ported enclosures that tends to limit excursion. The unique design allows the active driver compression free excursion resulting in deep, dynamic, and powerful bass response.

SLAPS design differs from other passive devices by having double edge suspension and no center spider. SLAPS is designed from the ground up to be operated and controlled pneumatically. Traditional passive devices are often just a normal active driver where the primary motor system (voice coil and magnet) has been been removed. Conventional devices are designed to be powered electrically in which the force emanates from the drivers conical center. A passive device is operated pneumatically by air pressure from the active driver. For pneumatic operation, a traditional unit does not perform identically in positive and negative pressure environments. (imploding edge suspension and positive over ring).

SLAPS have a dual structure of identical opposites, ie. that there is an introvert and an extrovert edge suspension and no spider. This gives identical properties in both the negative and positive pressure domain. SLAPS thus behaves pistonically and accurately, they do not have the “hesitation” traditional passive devices seem to have when you observe them in operation.

SLAPS enables the transfer of high amplifier power into low frequency output. Since the device does not have to fight against increasing pneumatic pressure in a closed cabinet or over-excurt close to a port tuning frequency. SLAPS has no annoying port noise and enables deep bass from a compact volume. SLAPS promotes the dynamics of a small system in which a closed enclosure design has difficulties. In a closed cabinet design the pneumatic loading of the woofer increases as a function of its travel, this causes compression. SLAPS technology possesses none of these limitations.

Key System Benefits:

• Coupled with almost all woofers, SLAPS increases output without added amplifier power or enclosure volume.
• Suitable for high output needs where space is limited.
• User-tunable adjustments can be set to match a range of vehicle requirements and musical preferences.

Key Installation Benefits:

• Installs just like a subwoofer
• Slim-mount design is only 3-inches deep
• No increase over existing sealed subwoofer enclosure sizes

Note:

• This version does not feature an adjustable mass for tuning.
• It is designed for a 85 Liter box ( 3 cubic feet ) and at a tuning frequency of 15Hz.
• Keep at least 5 cm of free air behind the SLAPS-15-V2 for it to be able to move freely.

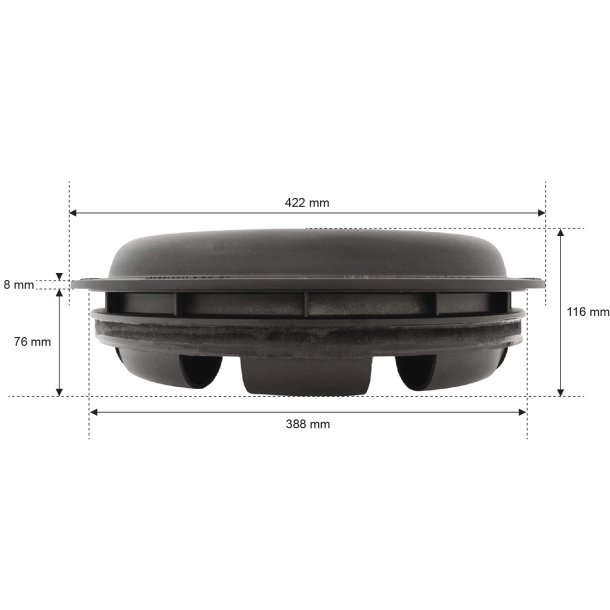

Produkt Dimensioner

Height

116 mm

Outer Diameter

422 mm

Countersinking Depth

8 mm

Cut out hole

388 mm

Mounting Depth

76 mm

Weight

2.73 kg

Parameters

Sd

760 cm3

Mmd

983 g

Xmax

4.5″

Mms

995 g

Cms

0.1820 N/mm

Vas

5.228 cu. ft.

Fs

13 Hz

Qms

N/A

Qt

0.38
