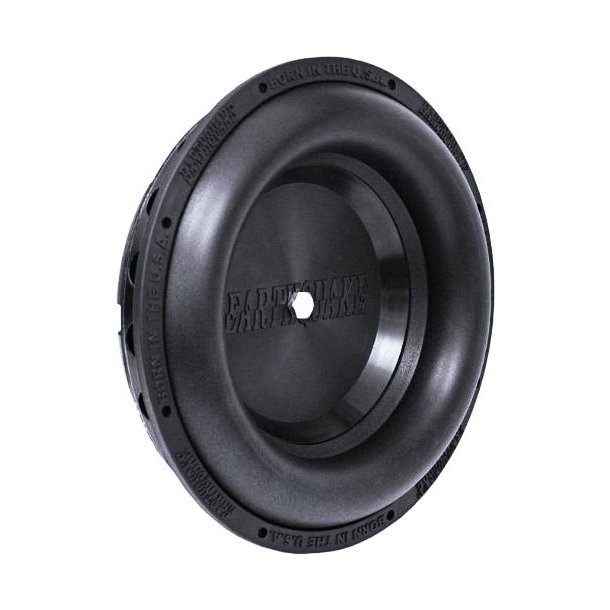

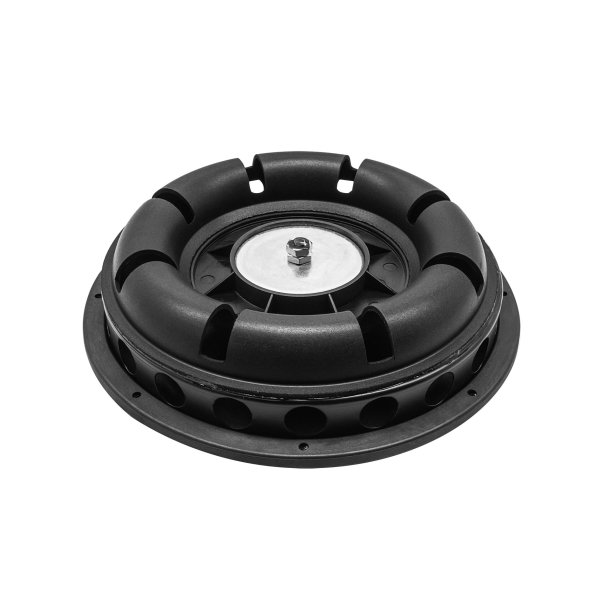

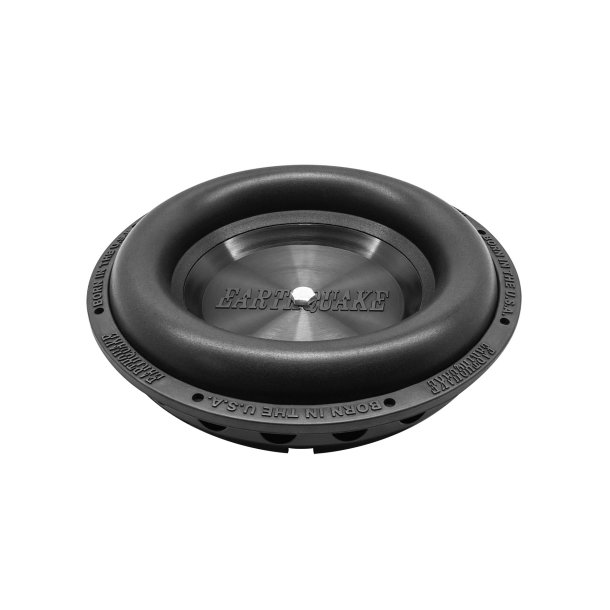

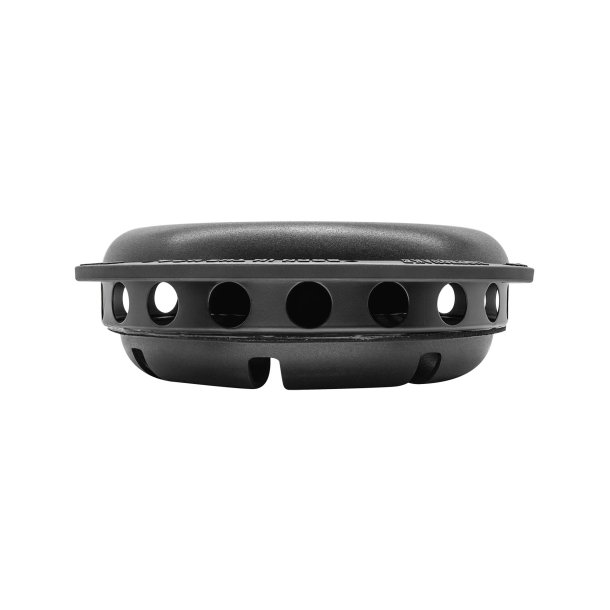

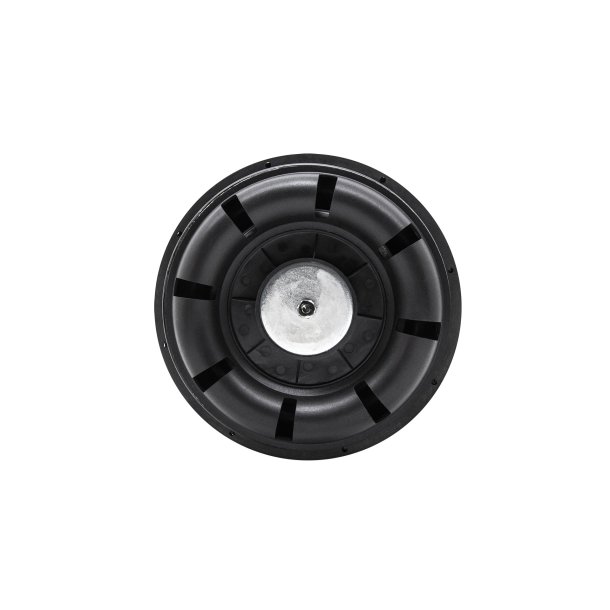

The SLAPS M series differs from the regular SLAPS by having a pre fitted tuning bolt centered on the device. This provide easy addition of weight for tuning the SLAPS. The M series boasts impressive performance with extended excursion capability. It also features a very rational price due to the annular stamped steel chassis.
Earthquake SLAPS are Tunable Passive Radiators that provide additional bass, without additional amplifier power or enclosure volume. Designed to perfectly complement all good quality long-throw woofers on the market. SLAPS add up to +6dB of bass compared to regular sealed and ported enclosures. The benefit of them being user tunable is they can be integrated into virtually any sub/ cabinet combination.
Key Installation Benefits:
- Installs just like a subwoofer
- Slim-mount design is only 3-inches deep
- No increase over existing sealed subwoofer enclosure sizes
- Easy tuning for quick adjustments
Her er link til redskaber som kan hjælpe dig med din egen konstruktion
https://www.earthquakesound.dk/wp-content/SLAPS/index.html
https://www.earthquakesound.dk/wp-content/uploads/2016/10/SLAPS_manual_ENG.pdf
Produkt Dimensioner
- Diameter
- 261 mm
- Cutout Diameter
- 236 mm
- Mounting Depth
- 50 mm
- Hex Nut Size
- US 5/16 (M8)
- Mass ID
- 8mm
- Max Mass OD
- 74mm
Parameters
- Sd
- 301 cm²
- Xmax
- 10.2cm
- Mms
- 100g (Total moving mass it includes the air load)
- Cms
- 0.4275 mm / N
- Vas
- 1.5 cu.ft.
- Fs
- 29 Hz
- Qms
- 7.00
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| SLAPS_manual_DK-1.pdf | 838.27KB | Download |
