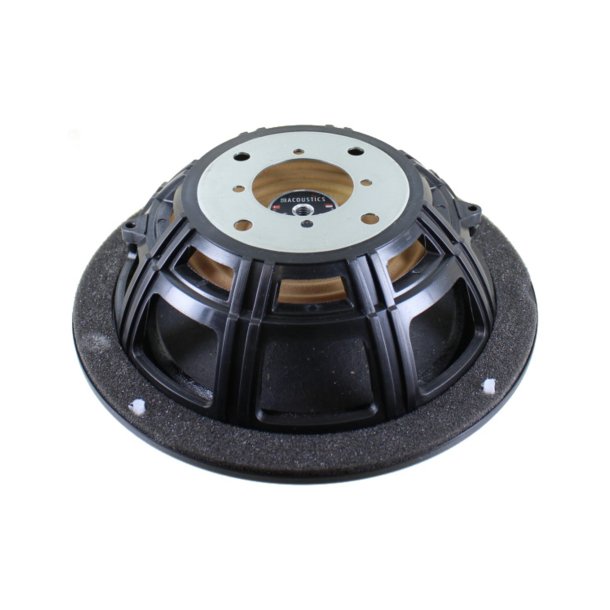

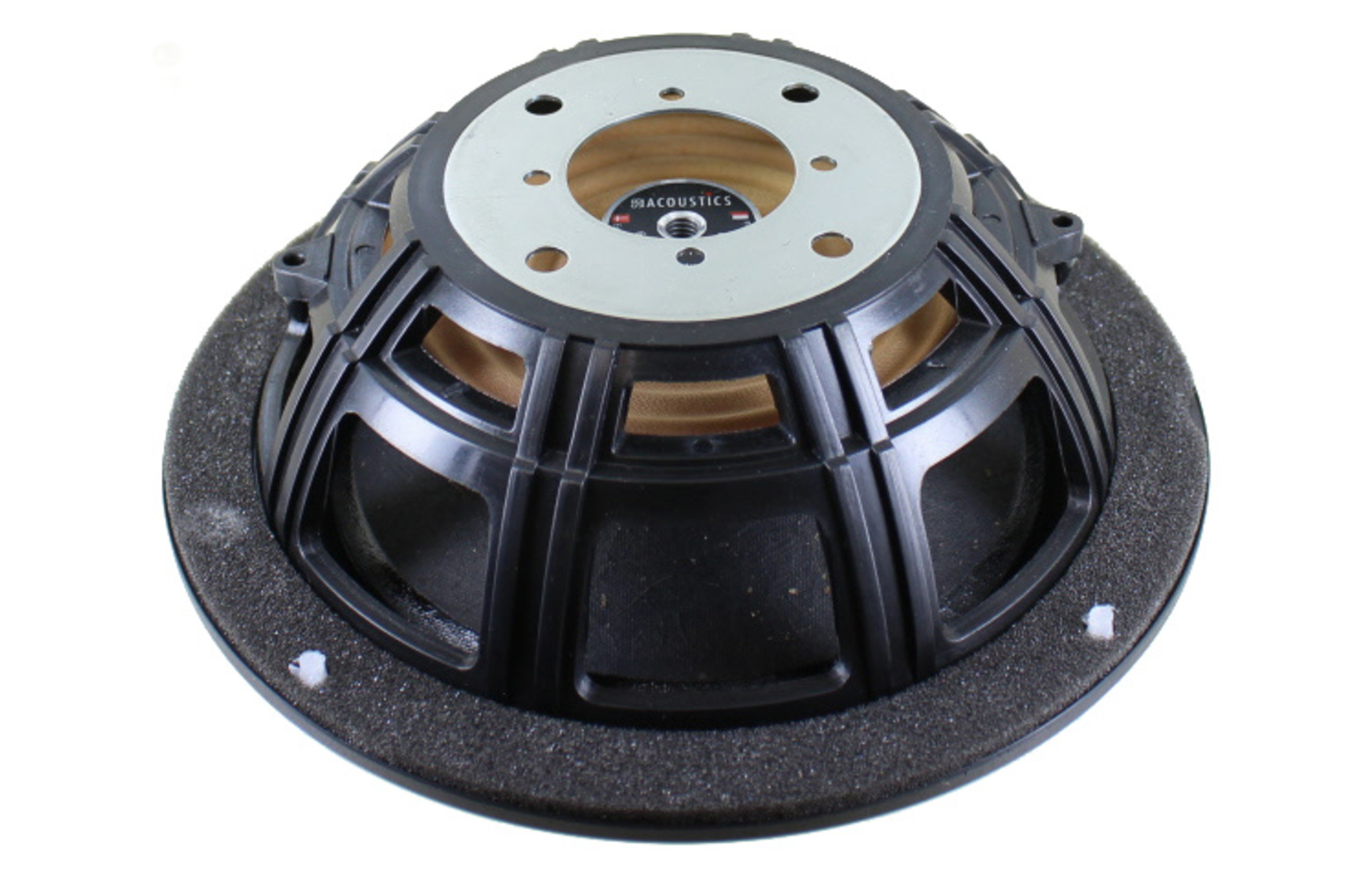

- Vented reinforced plastic chassis
- Proprietary cone material with natural fibers made in-house
- Soft low damping surround
- Easily adjustable moving mass
- - - - - - -
Specs
- Effective piston area, Sd 124 cm2
- Free air resonance, Fs 22 Hz
- Compliance, Cms 1.4 mm/N
- Moving mass incl. air,Mms 38 g
- Maximum mechanical cone excursion,Xmech ± 10mm
- Mechanical loss, Rms 1.2 kg/s
- Mechanical Q-factor, Qms 4.4
- Equivalent volume, Vas 30 liters
- Net weight 169 g
| Størrelse (Tommer): | 6 |
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| SB-Acoustics-6in-SB16PFCR-00.pdf | 495.94KB | Download |
