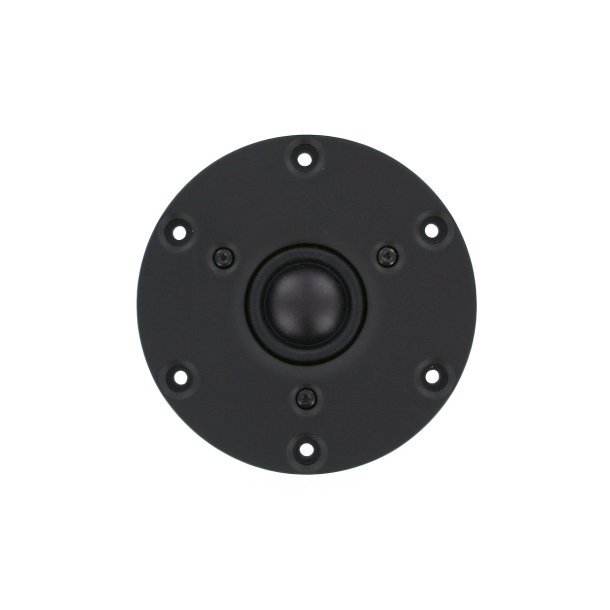

104 mm alufront.
The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations.
Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion.

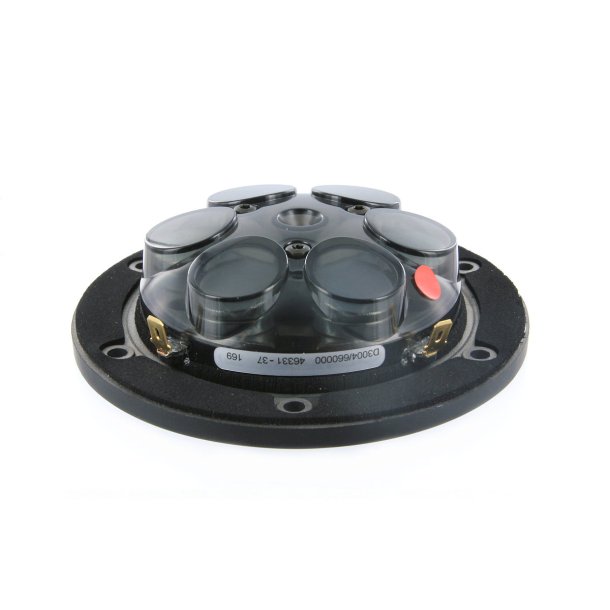

The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
Specifikationer:
Størrelse: 1
Nominel impedans: 4
Minimum impedans: 3,5
Maximum impedans: 18,4
DC modstand: 3
Induktion: 0,03
Egenresonans: 470
Mekanisk Q: 3
Elektrisk Q: 0,59
Total Q: 0,49
Kraft faktor: 2,3
RMS: 0,3
Mms: 0,35
Cms: 0,33
D: 30
Sd: 7
Vas: 0,02
Følsomhed: 91,5
RMS Watt: 90
Long Term Watt: 150
Voice coil dia.: 26
Voice coil Height: 2
Voice coil layers: 2
Gab Height: 2,5
Linear excursion: 0,2
Max. mechanical excursion: 1,6
Vægt: 0,3
Displacement vol.: 0.11
Frekvensområde: 2500-30000 Hz
Lukket: N.a.
Basrefleks: N.a.
