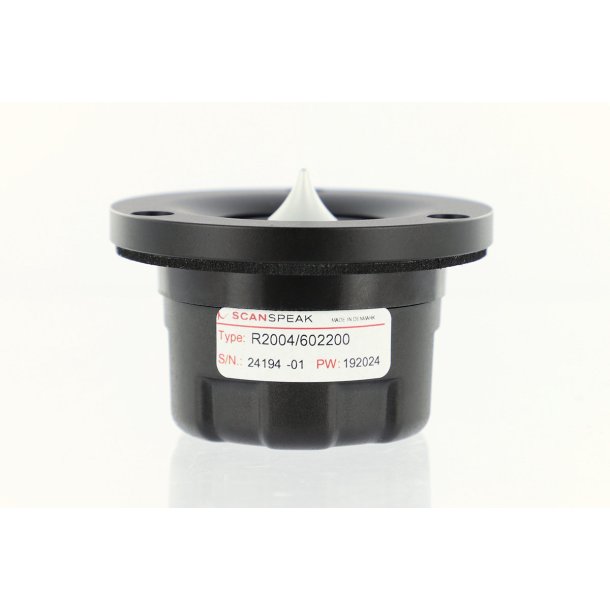

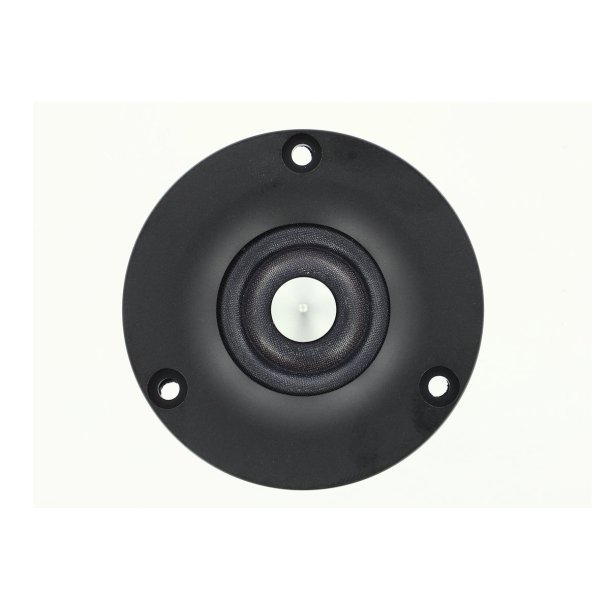

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options.
The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.
- 3/4" Ring Dome Diaphragm
- Patented Phase Plug Design
- Patented Symmetrical Drive (SD-2) motor
- Black Anodized Machined Alu Face Plate
- Gold plated terminals
Specifikationer:
Størrelse: 0,75
Nominel impedans: 4
Minimum impedans: 3,5
Maximum impedans: 16,6
DC modstand: 2,8
Induktion: 0,02
Egenresonans: 625
Mekanisk Q: 2,88
Elektrisk Q: 1,43
Total Q: 0,96
Kraft faktor: 1,3
RMS: 0,3
Mms: 0,22
Cms: 0,29
D: 22
Sd: 3,8
Vas: 0,01
Følsomhed: 87,5
RMS Watt: 50
Long Term Watt: 120
Voice coil dia.: 19
Voice coil Height: 1,8
Voice coil layers: 2
Gab Height: 2,5
Linear excursion: 0,4
Max. mechanical excursion: 1,6
Vægt: 0,1
Displacement vol.: 0,04
Frekvensområde: 3000 - 40000 Hz
Lukket: N.a.
Basrefleks: N.a.
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| r2004-602200.pdf | 700.39KB | Download |
