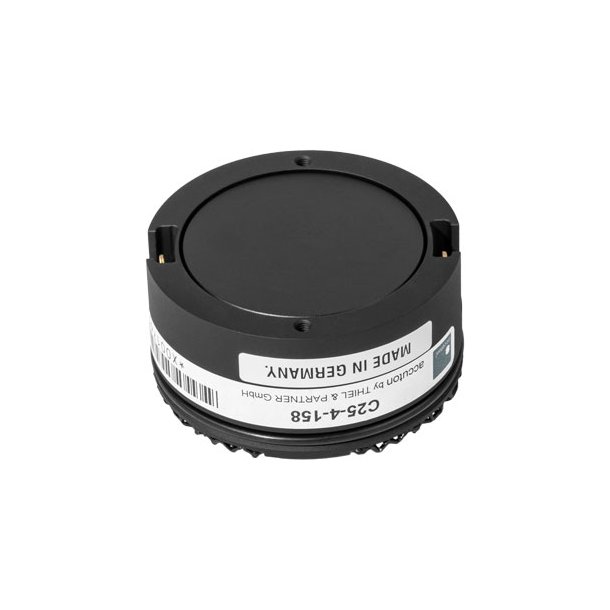

Accuton C25-4-158
28 mm tweeter with ceramic cone. The magnet system is based on Neodymium technology. In linear operation the underhang voice coil remains completely within the magnetic field.
- power handling (continuous/programme) = 100 W
- frequency range = 2500-30000 Hz
- impedance R = 4 Ohm
- sound pressure level SPL = 93,5 dB (2,83V; 1m)
- effective piston radiating area Sd = 5,94 cm2
- voice coil diameter = 28 mm
- mounting diameter d = 58 mm
- overall diameter d = 57,6 mm
- mounting depth (not countersunk) t = 28 mm
