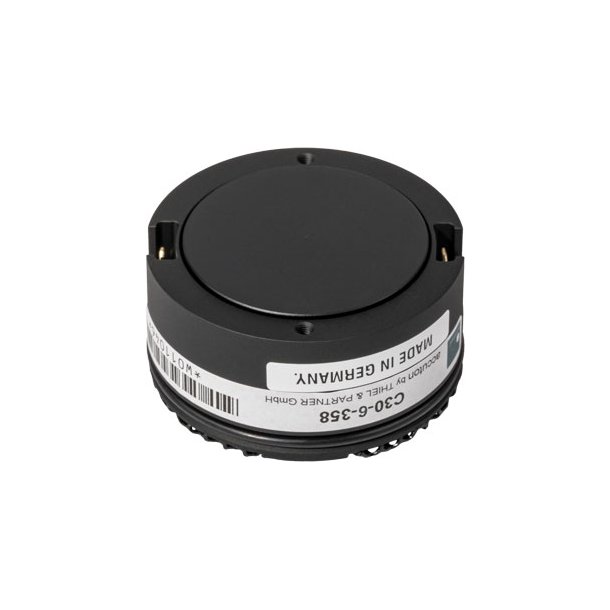

Accuton C30-6-358

4.500,00 DKK

Model/Varenr.: C30-6-358
Vægt: 1 kg.
stk.

Accuton C30-6-358

30 mm tweeter with ceramic cone. The magnet system is based on Neodymium technology. In linear operation the underhang voice coil remains completely within the magnetic field.

  • power handling (continuous/programme) = 120 W
  • frequency range = 2500-30000 Hz
  • resonance frequency fs = 810 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 3,98 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 8,55 cm2
  • effective mechanical mass incl. air load mms = 0,28 g
  • total Q factor Qts = 0,61 (Qms=2,54, Qes=0,81)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 1,2 mm
  • mounting diameter d = 58 mm
  • overall diameter d = 57,6 mm
  • mounting depth (not countersunk) t = 28 mm
  • mass m = 0,38 kg
Titel Type Størrelse Download
accuton_c30_6_358.pdf PDF 1.38MB Download
