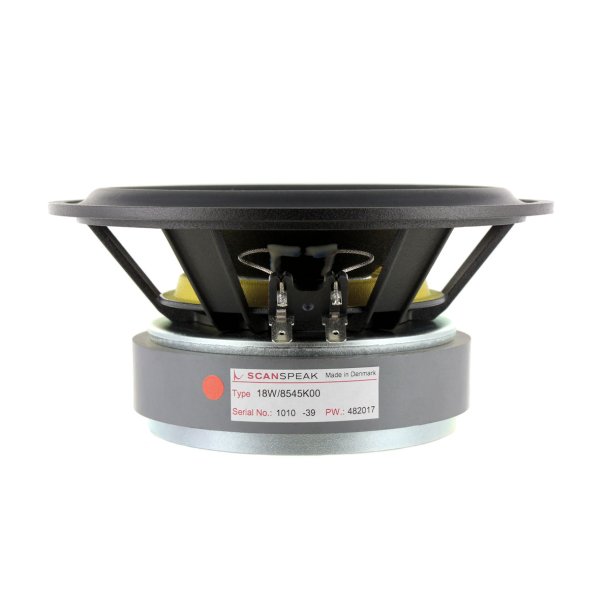

18cm Midwoofer 8ohm, Carbonfiber Paper Cone, Fiberglass VC Former
The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception. The Classic woofers are highly praised, and are used in some of the worlds most exceptional high-end Loudspeakers. Some feature Kevlar cones others have the innovative Carbon fibre paper cones.
Specifikationer:
Størrelse: 6,5
Nominel impedans: 8
Minimum impedans: 6,6
Maximum impedans: 101
DC modstand: 5,5
Induktion: 0,4
Egenresonans: 28
Mekanisk Q: 5,2
Elektrisk Q: 0,3
Total Q: 0,28
Kraft faktor: 8,2
RMS: 0,69
Mms: 20,5
Cms: 1,58
D: 136
Sd: 145
Vas: 46,4
Følsomhed: 87,5
RMS Watt: 100
Long Term Watt: 170
Voice coil dia.: 42
Voice coil Height: 19
Voice coil layers: 2
Gab Height: 6
Linear excursion: 6,5
Max. mechanical excursion: 10
Vægt: 2,3
Displacement vol.: 0.54
Frekvensområde: fs-3000 Hz
Lukket: Vbox=10 ltr, f(-3dB)=67 Hz
Basrefleks: Vbox=16 ltr, fb=39 Hz, f(-3dB)=44 Hz
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 18w-8545k00.pdf | 262.67KB | Download |
