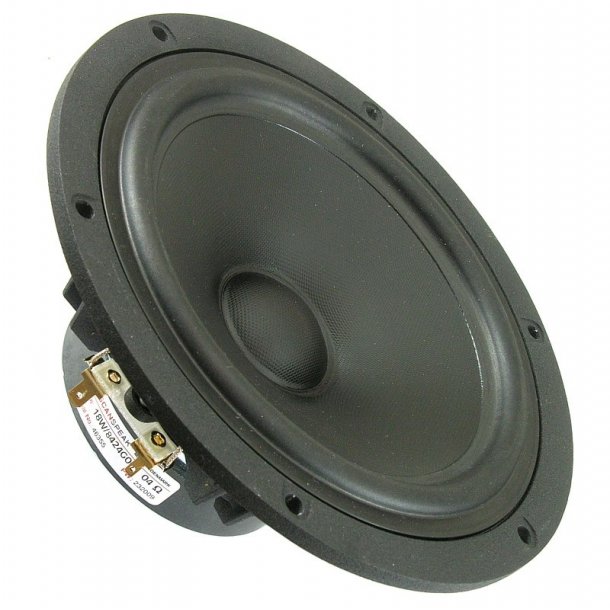

18cm Midwoofer 8ohm, Coated Fiberglass Cone, Ferrite Magnet
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
Specifikationer:
Størrelse: 6,5
Nominel impedans: 8
Minimum impedans: 6,4
Maximum impedans: 50,9
DC modstand: 5,7
Induktion: 0,69
Egenresonans: 54
Mekanisk Q: 4,04
Elektrisk Q: 0,51
Total Q: 0,45
Kraft faktor: 6,6
RMS: 0,95
Mms: 11,3
Cms: 0,77
D: 132
Sd: 137
Vas: 20,3
Følsomhed: 89,5
RMS Watt: 50
Long Term Watt: 110
Voice coil dia.: 25
Voice coil Height: 10,2
Voice coil layers: 2
Gab Height: 5
Linear excursion: 2,6
Max. mechanical excursion: 8
Vægt: 1,1
Displacement vol.: 0.28
Frekvensområde: fs-8000 Hz
Lukket: Vbox=16 ltr, f(-3dB)=81 Hz
Basrefleks: Vbox=34 ltr, fb=44 Hz, f(-3dB)=41 Hz
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 18w-8424g00-1.pdf | 336.04KB | Download |
