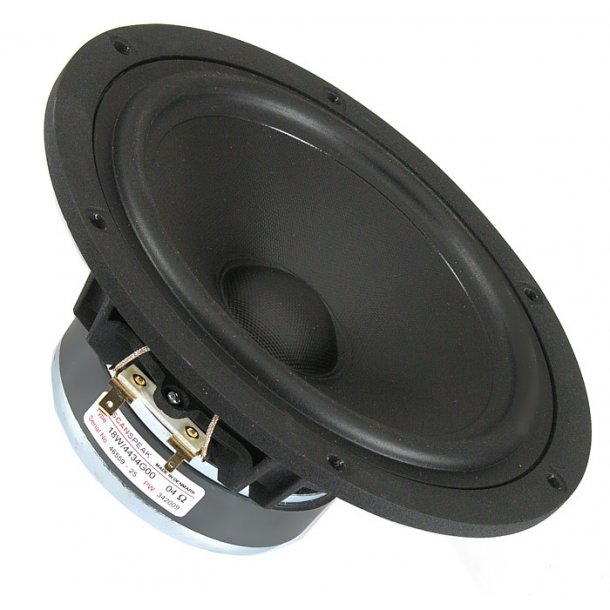

18cm Midwoofer 4ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
Specifikationer:
Størrelse: 6,5
Nominel impedans: 4
Minimum impedans: 3,9
Maximum impedans: 66,3
DC modstand: 3
Induktion: 0,39
Egenresonans: 47
Mekanisk Q: 7,81
Elektrisk Q: 0,37
Total Q: 0,35
Kraft faktor: 6
RMS: 0,55
Mms: 14,41
Cms: 0,79
D: 132
Sd: 137
Vas: 20,7
Følsomhed: 91,5
RMS Watt: 55
Long Term Watt: 170
Voice coil dia.: 32
Voice coil Height: 13,6
Voice coil layers: 2
Gab Height: 5
Linear excursion: 4,3
Max. mechanical excursion: 8
Vægt: 1,3
Displacement vol.: 0.30
Frekvensområde: fs-8000 Hz
Lukket: Vbox=9 ltr, f(-3dB)=86 Hz
Basrefleks: Vbox=18 ltr, fb=49 Hz, f(-3dB)=50 Hz
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 18w-4434g00.pdf | 303.03KB | Download |
