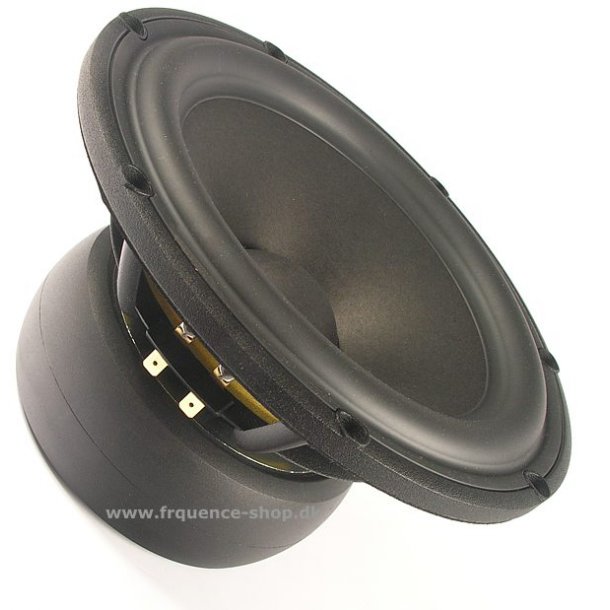

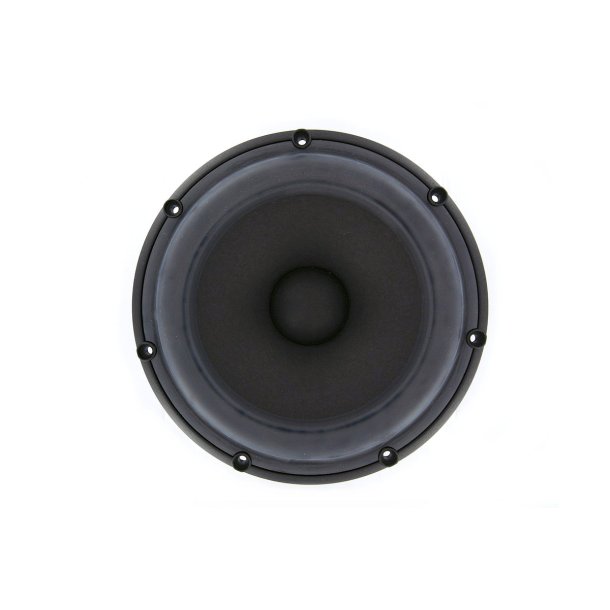

22cm Woofer 4ohm, Rigid Paper Cone, Ferrite Magnet
The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.
Specifikationer:
Størrelse: 8
Nominel impedans: 4
Minimum impedans: 4,5
Maximum impedans: 87,4
DC modstand: 3,7
Induktion: 0,3
Egenresonans: 21
Mekanisk Q: 5,2
Elektrisk Q: 0,23
Total Q: 0,22
Kraft faktor: 8,2
RMS: 0,81
Mms: 32,5
Cms: 1,85
D: 167
Sd: 220
Vas: 126
Følsomhed: 89
RMS Watt: 80
Long Term Watt: 200
Voice coil dia.: 50
Voice coil Height: 24
Voice coil layers: 2
Gab Height: 6
Linear excursion: 9
Max. mechanical excursion: 14
Vægt: 3,6
Displacement vol.: 1.04
Frekvensområde: fs-3000 Hz
Lukket: Vbox=16 ltr, f(-3dB)=62 Hz
Basrefleks: Vbox=22 ltr, fb=36 Hz, f(-3dB)=45 Hz
