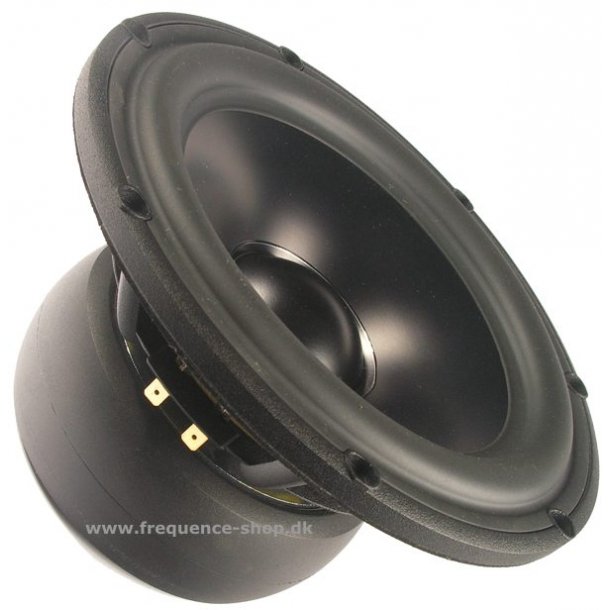

22cm Woofer 8ohm, Alu Cone, Ferrite Magnet
The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.
Specifikationer:
Størrelse: 8
Nominel impedans: 8
Minimum impedans: 7,2
Maximum impedans: 101
DC modstand: 6,2
Induktion: 0,35
Egenresonans: 23
Mekanisk Q: 4,9
Elektrisk Q: 0,32
Total Q: 0,3
Kraft faktor: 10,1
RMS: 1,09
Mms: 37
Cms: 1,29
D: 167
Sd: 220
Vas: 87,7
Følsomhed: 86
RMS Watt: 80
Long Term Watt: 200
Voice coil dia.: 50
Voice coil Height: 24
Voice coil layers: 2
Gab Height: 6
Linear excursion: 9
Max. mechanical excursion: 14
Vægt: 3,6
Displacement vol.: 1.04
Frekvensområde: fs-3000 Hz
Lukket: Vbox=22 ltr, f(-3dB)=52 Hz
Basrefleks: Vbox=39 ltr, fb=30 Hz, f(-3dB)=33 Hz
