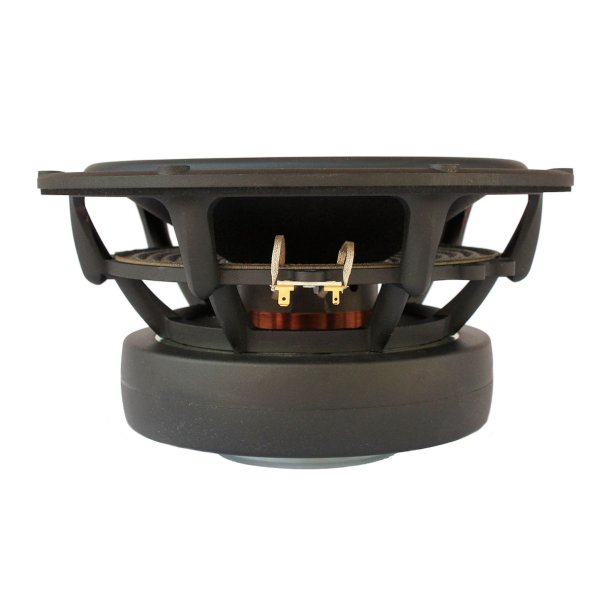

28 cm Woofer, 8 ohm, Sandwich Paper Cone, Ferrite Magnet
The 28W/8878T01 is a very powerful 28cm woofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency is it perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.
Specifikationer:
Størrelse: 11
Nominel impedans: 8
Minimum impedans: 7,4
Maximum impedans: 136
DC modstand: 6,3
Induktion: 0,55
Egenresonans: 22
Mekanisk Q: 5,81
Elektrisk Q: 0,33
Total Q: 0,31
Kraft faktor: 14,9
RMS: 2
Mms: 84
Cms: 0,62
D: 215
Sd: 363
Vas: 116
Følsomhed: 88,5
RMS Watt: 200
Long Term Watt: 500
Voice coil dia.: 75
Voice coil Height: 23
Voice coil layers: 2
Gab Height: 8
Linear excursion: 7,5
Max. mechanical excursion: 28
Vægt: 7,5
Displacement vol.: 2.23
Frekvensområde: fs-1000 Hz
Lukket: Vbox=31 ltr, f(-3dB)=48 Hz
Basrefleks: Vbox=57 ltr, fb=27 Hz, f(-3dB)=30 Hz
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 28w-8878t01.pdf | 300.32KB | Download |
