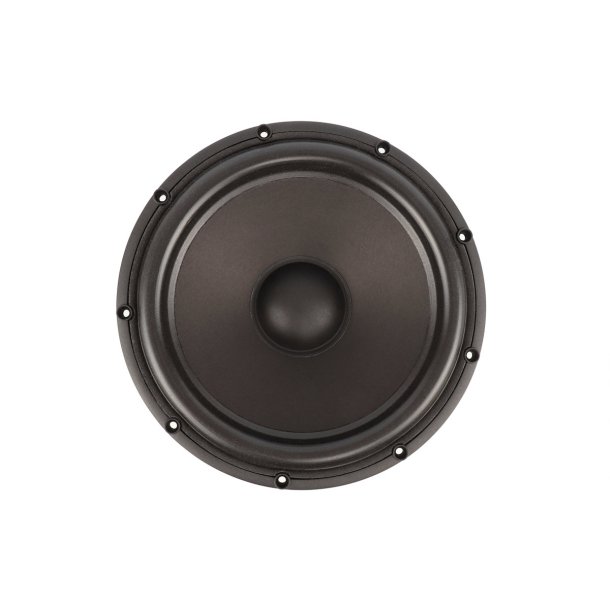

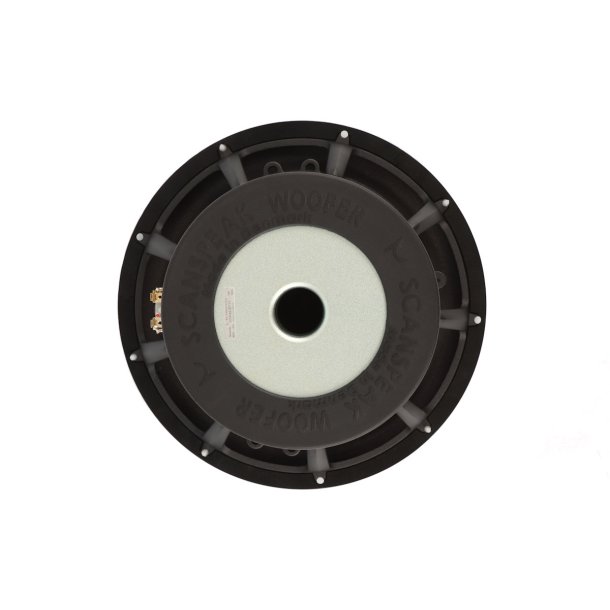

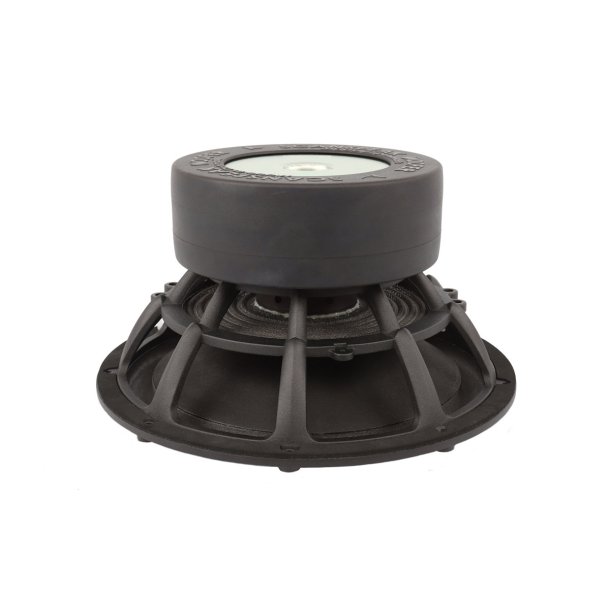

32 cm Woofer 4 ohm, H. Sens., Sandwich Paper Cone Foam surr Dbl FE Mag
The 32W/4878T11 woofer is optimized for high sensitivity applications. It offers an impressive 95 dB sensitivity at 2.83V/1m. It features a large 3” motor system with patented Symmetrical Drive, double ferrite magnets and a sandwich paper cone surrounded by a coated foam suspension.
Specifikationer:
Størrelse: 13
Nominel impedans: 4
Minimum impedans: 4
Maximum impedans: 68
DC modstand: 3,1
Induktion: 0,36
Egenresonans: 24
Mekanisk Q: 4,25
Elektrisk Q: 0,22
Total Q: 0,21
Kraft faktor: 14
RMS: 3,3
Mms: 93
Cms: 0,47
D: 260
Sd: 526
Vas: 185
Følsomhed: 95
RMS Watt: 350
Long Term Watt: 700
Voice coil dia.: 75
Voice coil Height: 22
Voice coil layers: 2
Gab Height: 8
Linear excursion: 7
Max. mechanical excursion: 28
Vægt: 9,8
Displacement vol.: 3.22
Frekvensområde: fs-1500 Hz
Lukket: Vbox=18 ltr, f(-3dB)=81 Hz
Basrefleks: Vbox=21.5 ltr, fb=47 Hz, f(-3dB)=59.5 Hz
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 32w-4878t11.pdf | 292.25KB | Download |
