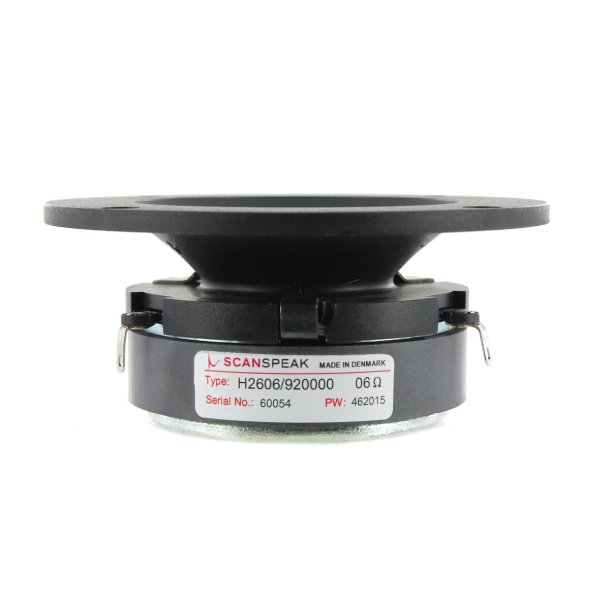

26mm Horn Dome Tweeter 6ohm, Ferrite Magnet
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
Specifikationer:
Størrelse: 1
Nominel impedans: 6
Minimum impedans: 5
Maximum impedans: 14,2
DC modstand: 4,7
Induktion: 0,05
Egenresonans: 1030
Mekanisk Q: 2,1
Elektrisk Q: 1,2
Total Q: 0,7
Kraft faktor: 3,3
RMS: 1,3
Mms: 0,4
Cms: -
D: 26
Sd: 5,7
Vas: -
Følsomhed: 95
RMS Watt: 100
Long Term Watt: 200
Voice coil dia.: 25
Voice coil Height: 1,6
Voice coil layers: 2
Gab Height: 2
Linear excursion: 0,2
Max. mechanical excursion: 1,6
Vægt: 0,6
Displacement vol.: 0.13
Frekvensområde: 2500-20000 Hz
Lukket: N.a.
Basrefleks: N.a.
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| h2606-920000.pdf | 229.96KB | Download |
