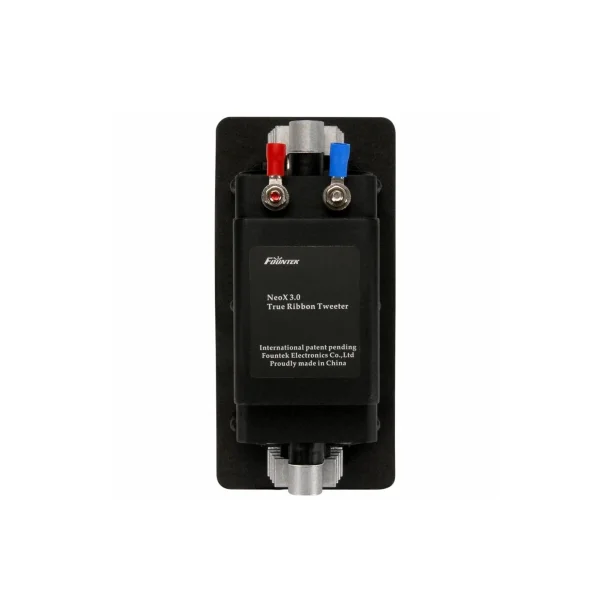

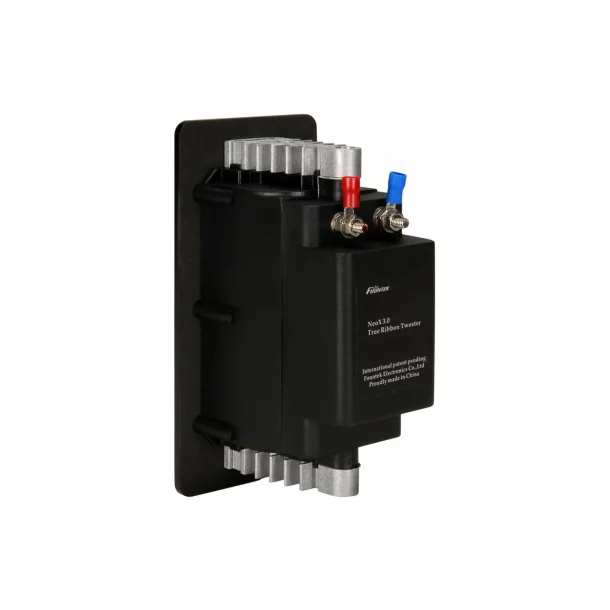

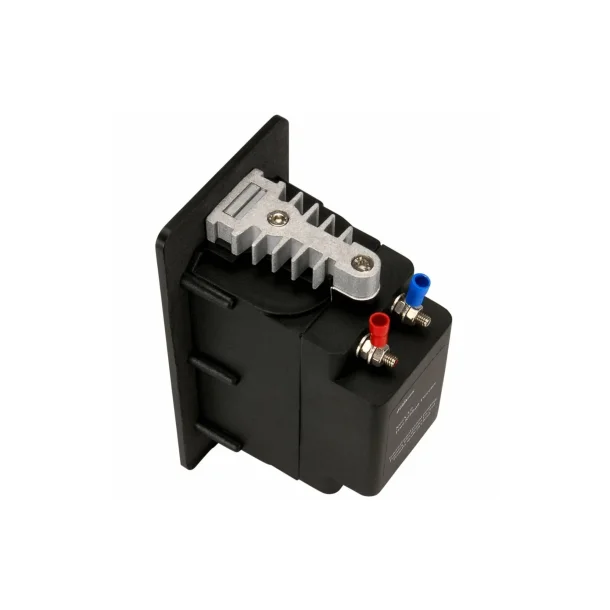

Fountek’s reputation as an innovator in ribbon transducer technology continues with the Neo X series of ribbon tweeters.
The Neo X 3.0 is built using third-generation Fountek ribbon driver technology, a strong neodymium motor structure, and built-in transformer to contribute to the responsiveness of this tweeter.
A 12 mm wide by 80 mm high, sandwiched-aluminum ribbon diaphragm increases sensitivity and power handling, while limiting vertical dispersion for sharper imaging and reduced floor and ceiling reflections.
All of this combines to make the Neo X 3.0 an incredible, true ribbon tweeter with a super-wide (and flat) frequency response that extends from 1,200 Hz out to 40,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot. The benign impedance makes the Neo X 3.0 a safe speaker to use with temperamental tube amplifiers.
Recommended minimum crossover frequency: 2,000 Hz @ 12 dB/octave.
Se downloads for tekniske data
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| pdf_Fountek_NeoX3.0-black_1.pdf | 842.18KB | Download |
