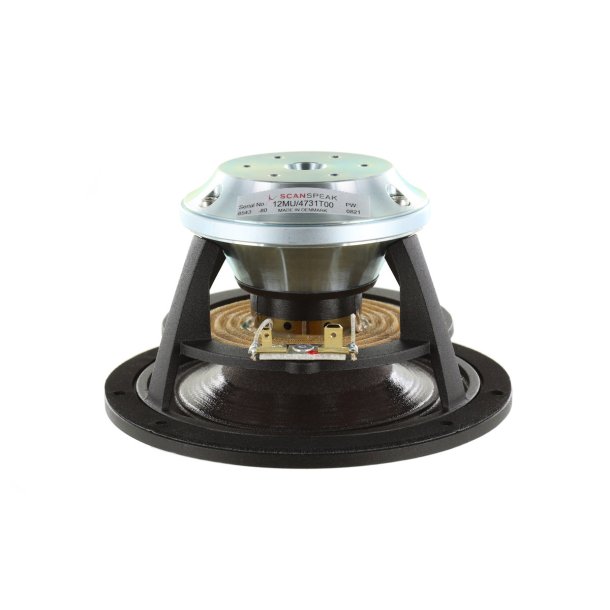

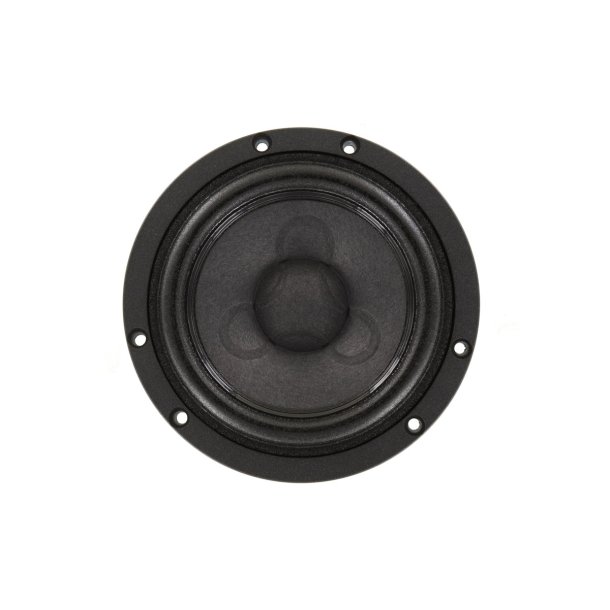

12MU/4731T00 Illuminator

2.360,00 DKK

Model/Varenr.: 12MU/4731T00

Vægt: 1 kg.

stk.

Beskrivelse

The Illuminator midranges and midwoofers are in every aspect unusual designs with the open construction, the extremely long linear excursion and patented under-hung SD-3 (Symmetrical Drive) neodymium motor system, which due to copper caps and its construction ensures very low distortion, adding the unique patented cones, low-loss linear suspension the result is: ”The Very Best Money Can Buy”!

Specifikationer:
Størrelse: 4
Nominel impedans: 4
Minimum impedans: 4,3
Maximum impedans: 46,5
DC modstand: 3,1
Induktion: 0,11
Egenresonans: 64
Mekanisk Q: 3,64
Elektrisk Q: 0,26
Total Q: 0,24
Kraft faktor: 5,1
RMS: 0,6
Mms: 5,4
Cms: 1,15
D: 86
Sd: 58
Vas: 5,4
Følsomhed: 90
RMS Watt: 80
Long Term Watt: 150
Voice coil dia.: 32
Voice coil Height: 6
Voice coil layers: 4
Gab Height: 13
Linear excursion: 3,5
Max. mechanical excursion: 10
Vægt: 0,8
Displacement vol.: 0.14
Frekvensområde: 100-10000 Hz
Lukket: Vbox=0.9 ltr, f(-3dB)=172 Hz
Basrefleks: Vbox=1.5 ltr, fb=99 Hz, f(-3dB)=119 Hz
