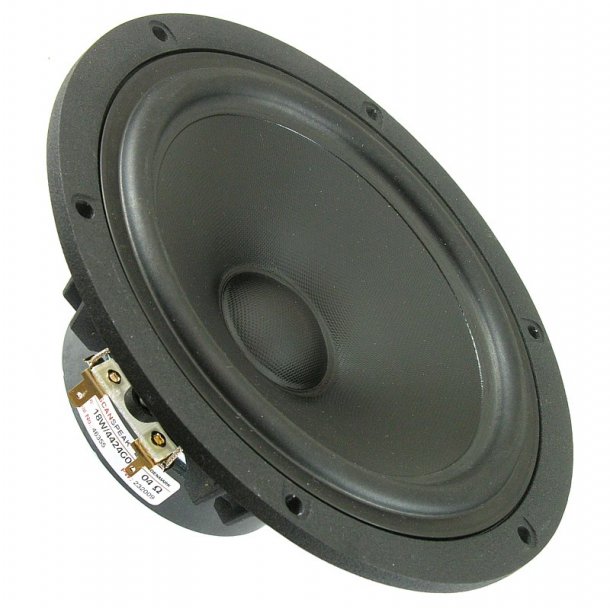

18cm Midwoofer 4ohm, Coated Fiberglass Cone, Ferrite Magnet
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
Specifikationer:
Størrelse: 6,5
Nominel impedans: 4
Minimum impedans: 4,1
Maximum impedans: 38
DC modstand: 3,2
Induktion: 0,47
Egenresonans: 49
Mekanisk Q: 4,57
Elektrisk Q: 0,42
Total Q: 0,38
Kraft faktor: 5,2
RMS: 0,77
Mms: 11,4
Cms: 0,92
D: 132
Sd: 137
Vas: 24,1
Følsomhed: 91
RMS Watt: 50
Long Term Watt: 110
Voice coil dia.: 25
Voice coil Height: 10,5
Voice coil layers: 2
Gab Height: 5
Linear excursion: 2,8
Max. mechanical excursion: 8
Vægt: 1,1
Displacement vol.: 0.28
Frekvensområde: fs-8000 Hz
Lukket: Vbox=13 ltr, f(-3dB)=85 Hz
Basrefleks: Vbox=26 ltr, fb=48 Hz, f(-3dB)=47 Hz
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 18w-4424g00.pdf | 328.61KB | Download |
